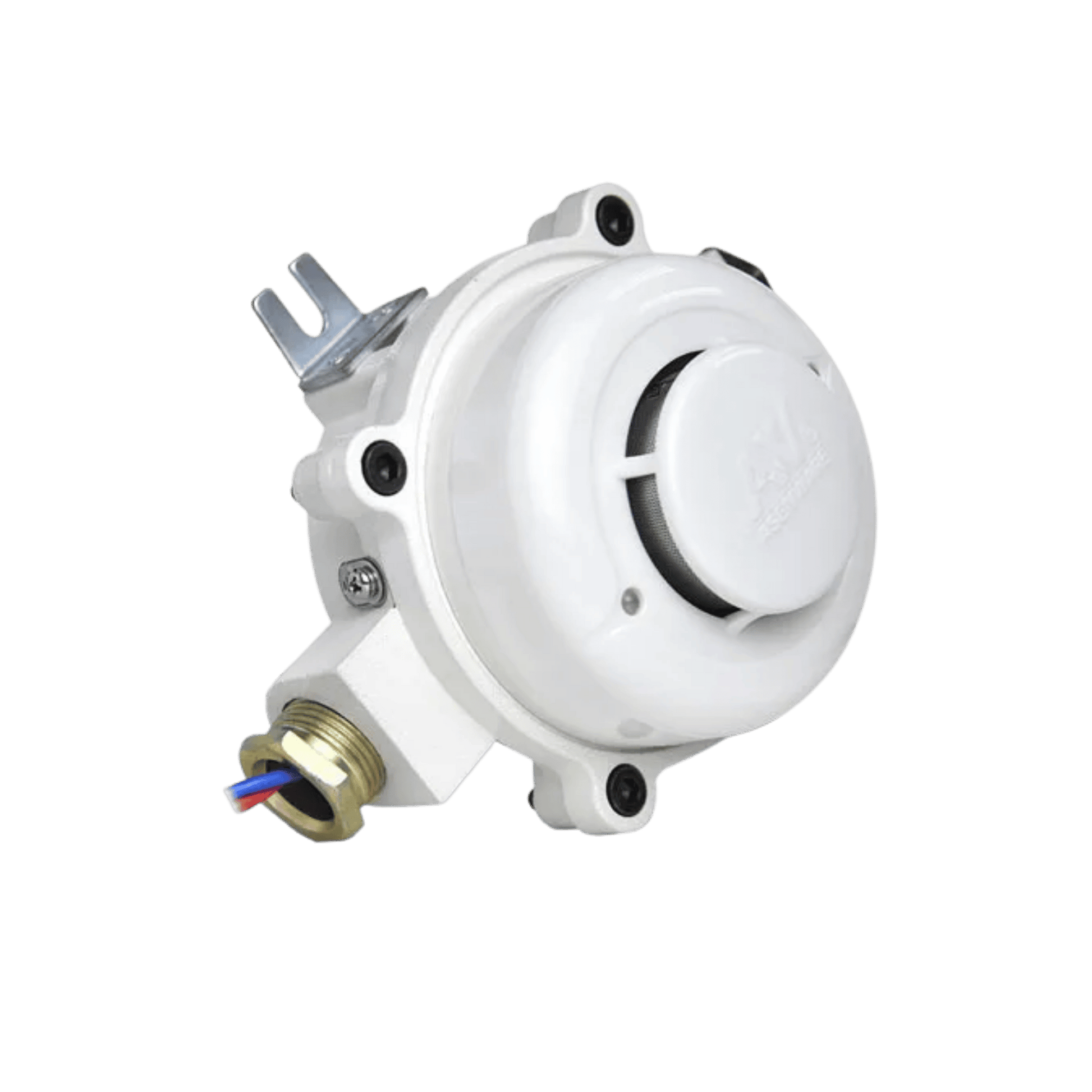

Ex Conventional Smoke Detector Alarm ATEX Hazardous Area Zone 1,2
Ex Conventional Smoke Detector Alarm ATEX Hazardous Area Zone 1,2
Couldn't load pickup availability
Enhance fire safety in hazardous environments with the AW-CSD381EX Explosion-Proof Smoke Detector — engineered for superior performance in explosive gas atmospheres. Ideal for oil & gas facilities, chemical plants, and other high-risk industrial zones, this detector combines cutting-edge photoelectric technology with rugged explosion-proof construction to deliver reliable fire detection in the toughest conditions.
Key Features:
-
Explosion-Proof Certified: Complies with ATEX II 2 G Ex d IIC T6 Gb standards for explosive gas atmospheres.
-
Advanced Photoelectric Detection: Utilizes innovative scattering technology and a unique maze design to quickly detect smoke particles.
-
Compliance-Ready: Fully meets EN54-7:2000 and EN54-5:2000 fire safety standards.
-
LED Indicator: Clear alarm confirmation light flashes during inspection and remains on during alarm.
-
Easy Installation: Designed for simple setup with standard G20 outlet interface and 2-G3/4 outlet threads.
-
System Compatible: Seamlessly integrates with AW-CFP2166 fire alarm control panel and other conventional fire alarm systems.
Collapsible content
Technical Datasheet
Shipping
Shipping rates and delivery times are calculated at checkout.
Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.
We aim to process and get your delivery with you as quick as possible.
Please contact us to retrieve the estimate lead times for your order.
Guarantee
We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.
Warranty
• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
Please see our returns policy for more information.
How to videos
-
Hazardous Area Certified
Certification
Equipment Protection Level
- Exib tD DA21 IP65 T85
- Exib tD DA21 IP65 T85
-
Additional Features
- LED indicator
- Excellent explosion proof performance
- Meets all requirements of latest EN54-7:2000
- Easy Installation
-
Features
- Main Voltage DC24V±3V (no polarity)
- Operating current Monitor: 150uA
- Alarm: 30mA
- Alarm Relay Out: Normally Open and Closed
- Smoke Alarm Sensitivity: 0.10dB/m~0.27 dB/m
- Protection class IP30
Materials: ABS, White - Mating Panel AW-CFP2166 fire alarm control panels
Applications
-
Oil & Gas
This sector is one of the most high-risk environments for fire and explosion, making ATEX smoke detection indispensable.
- Installed in living quarters, control rooms, compressor rooms, and helidecks to detect smoke from electrical faults or equipment overheating.
- Deployed in processing units, control buildings, and storage tank zones where flammable gases and vapors are present.
- Positioned near valves, fuel pumps, and gantries to provide early warning in case of leaks or combustion.
-
Manufacturing and Processing Plants
Facilities that process volatile chemicals require continuous air monitoring and reliable early fire detection.
- Solvent Storage Rooms: Detect smoke from spontaneous combustion or faulty electrical equipment.
- Reactor & Mixing Areas: Placed above or around reactors where exothermic reactions may cause overheating or fires.
- Cleanrooms & Laboratories: Sensitive enough to detect smoke without disrupting delicate operations; certified enclosure ensures safe installation in explosive environments.
-
Industrial Manufacturing & Fabrication
Many manufacturing operations involve combustible materials or high-voltage equipment.
- Prevents ignition of aerosolized paints and solvents.
- Used near extrusion machines or chemical mixing areas where fumes and particles can become ignition sources.
- Detects overheating or smoke from spark-prone processes.
How to wire video
Why Choose This ATEX Smoke Detector?
The Ex Conventional Smoke Detector Alarm offers a balance of sensitivity, durability, and compliance, making it a critical addition to fire detection systems in explosive environments. With its rugged flameproof housing, advanced smoke sensing capabilities, and broad compatibility with global fire alarm systems, this detector is the ideal choice for operators looking to maintain safety, uptime, and regulatory compliance in the most demanding environments.
Ex Conventional Smoke Detector Alarm – ATEX
The Ex Conventional Smoke Detector Alarm is a highly reliable flameproof device engineered for early fire detection in explosive atmospheres. Certified to ATEX and IECEx standards, this detector is purpose-built for use in Zone 1 and Zone 2 hazardous areas where flammable gases, vapors, or dust may be present. It plays a critical role in industrial fire safety systems, providing an early warning signal to prevent fire escalation and protect both people and assets.
This detector integrates seamlessly into conventional fire alarm systems and is compatible with most standard fire control panels, making it ideal for retrofit or new installations in a wide range of industries.
