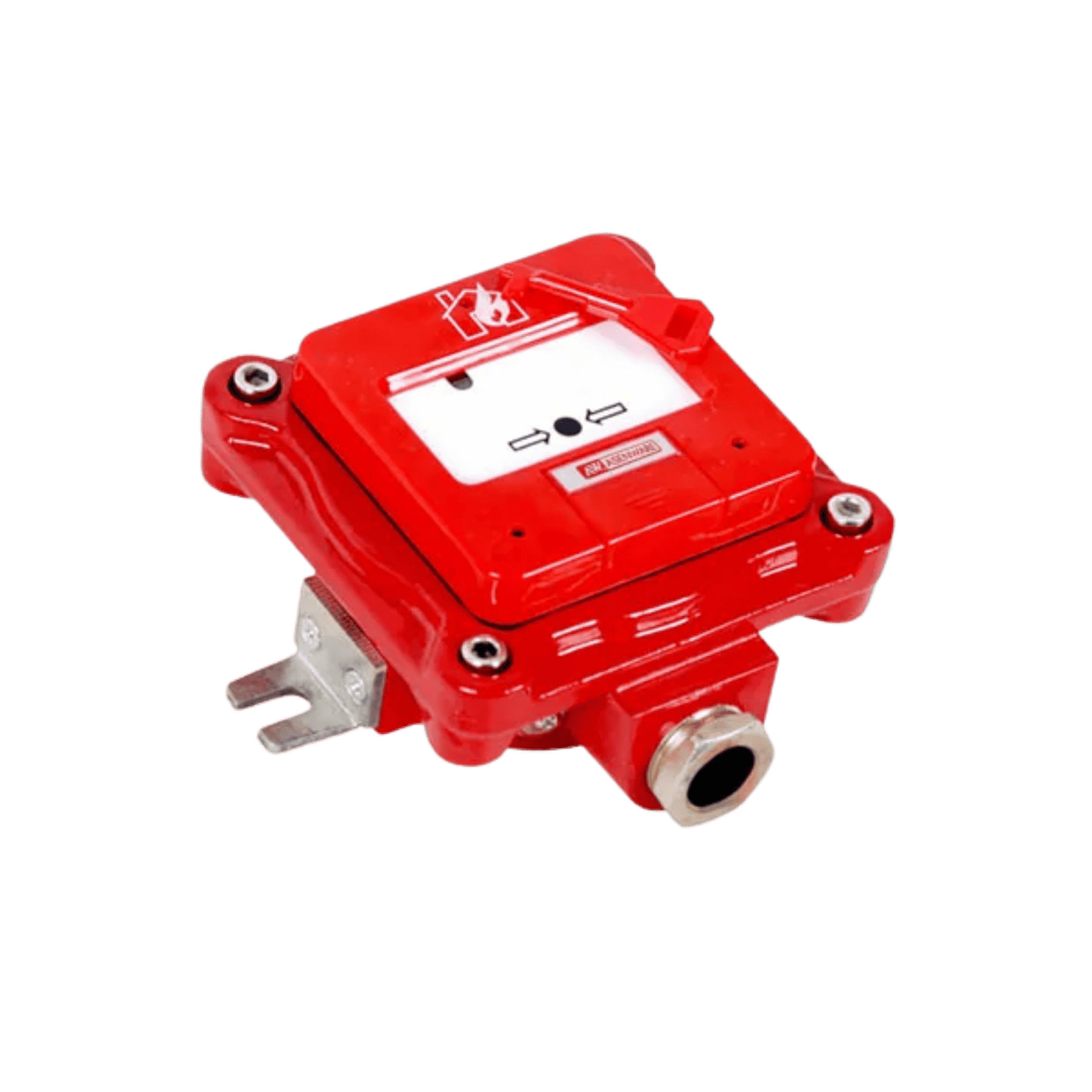

Ex Emergency Fire Alarm Break Glass Start-Stop Push Button Box - ATEX Hazardous Area Zone 1,2
Ex Emergency Fire Alarm Break Glass Start-Stop Push Button Box - ATEX Hazardous Area Zone 1,2
Couldn't load pickup availability
Ensure maximum safety in explosive gas environments with our Explosion-Proof Emergency Start/Stop Button, expertly engineered for reliable performance in critical emergency situations. This manual alarm push button switch is designed in strict compliance with GB3836-2000 explosion-proof standards and has been certified by authorized inspection authorities. Ideal for Zone 1 and Zone 2 hazardous locations, it supports explosive atmospheres classified as Class IIA, IIB, and IIC, with temperature groups T1 to T6.
Collapsible content
Technical Datasheet
Shipping
Shipping rates and delivery times are calculated at checkout.
Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.
We aim to process and get your delivery with you as quick as possible.
Please contact us to retrieve the estimate lead times for your order.
Guarantee
We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.
Warranty
• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
Please see our returns policy for more information.
How to videos
-
Hazardous Area Certified
Equipment Protection Level
ATEX
- Exd IIC T6 Gb/ Ex tD A21 IP65 T85℃
- Exd IIC T6 Gb/ Ex tD A21 IP65 T85℃
-
Features
- With a reset key
- Alarm indicator
- Excellent explosion-proof
performance
-
Specifications
- Voltage - DC24V
- Contact Rating - OUT-1: DC30V/100mA Dry contact
- Indicator Standby - Green Alarm: Red
- Alarm Out - Normal Open
- Mating Host - AW-CFP2166 fire alarm control panel
- Outlet Thread - G3/4
- Temperature range: -20 to 50°C
- Material - Cast Iron (optional) or standard ABS, RED
- Size - 135mm* 130mm* 64mm
- Weight about 1kg
Applications
-
Oil & Gas Industry
Offshore Oil Rigs and Platforms: Mounted at control stations, accommodation modules, or along walkways to allow immediate shutdown or emergency start of safety systems during gas leaks or fire outbreaks.
Refineries & Petrochemical Plants: Positioned near volatile storage tanks, pipelines, or high-temperature processing units for instant fire system activation.
Fuel Depots & Tank Farms: Used near loading/unloading points and bulk storage areas to mitigate risk during transfer operations. -
Chemical & Pharmaceutical Manufacturing
Explosion-Prone Production Areas: Where reactive chemicals or solvents are handled, this device offers manual override of automatic suppression systems.
Clean Rooms & Laboratory Environments: Installed to ensure controlled emergency intervention without risking contamination or damage to sensitive experiments and processes. -
Industrial Manufacturing & Warehousing
Paint Shops & Spray Booths: Provides manual fire system initiation in environments with high levels of flammable aerosols.
Dust-Prone Facilities (e.g., grain, wood, plastics): Used to shut down equipment and activate suppression systems in dust ignition-prone areas.
Battery Manufacturing Plants: Deployed to mitigate thermal runaway incidents in lithium-ion battery production lines.
ATEX Certified for Hazardous Areas Zone 1 & 2
Ensure rapid emergency response and operational safety in explosive environments with the Ex Emergency Fire Alarm Start-Stop Push Button Box. Specially designed for ATEX-certified hazardous area applications, this unit is ideal for controlling fire suppression systems, emergency shutdowns, and initiating safety protocols in environments where flammable gases, vapors, or dusts are present.
This durable and reliable start-stop control station is engineered to perform in Zone 1 and Zone 2 hazardous locations, in line with international ATEX and IECEx standards.
Explosion-Proof ATEX-Rated Fire Alarm Systems
-

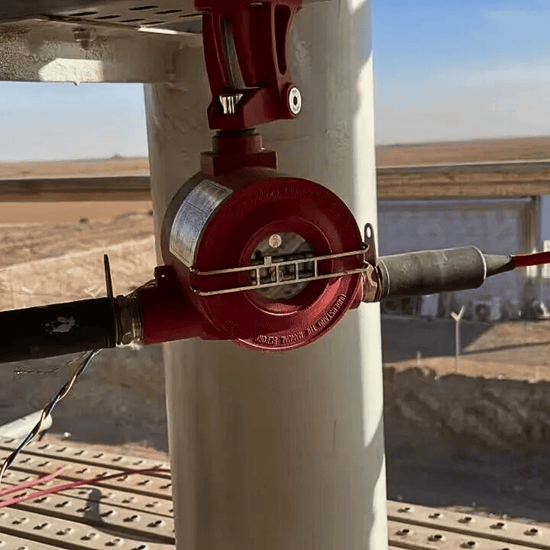

ATEX UV & Infrared Flame Detectors
Our dual-spectrum flame detectors use ultraviolet and infrared technology to detect fires within milliseconds — even in challenging conditions like smoke, dust, or direct sunlight. Ideal for open spaces and process areas where flames may appear without significant smoke.
- Fast flame detection
- Resistant to false alarms
- Suitable for hydrocarbon and non-hydrocarbon fires
-
ATEX Smoke and Heat Detectors
Our explosion-proof smoke and heat detectors are engineered to function reliably in volatile atmospheres. Whether detecting slow-burning smoldering fires or rapid temperature increases, these detectors provide early warning to prevent catastrophic events.
- Fixed temperature or rate-of-rise options
- Photoelectric and ionization detection
- Certified for Zones 1, 2, 21 & 22
-
ATEX Strobe Sounders & Alarm Sounders
In loud or large hazardous areas, visual and audible alerts are crucial. Our ATEX strobe sounders and alarm sounders ensure that fire alerts are seen and heard — even in the noisiest industrial environments.
- High-decibel sound output
- Bright, flashing strobe lights
- IP-rated for harsh conditions
Explosion proof emergency start / stop-action button
Enhances compliance with ATEX Directive 2014/34/EU and international safety standards
Provides manual control in automated fire suppression systems
Minimizes damage through immediate response to hazardous situations
Prevents false alarms through tamper-resistant break-glass design
Easily integrated into existing fire and gas detection systems
