Ex 1 UV Flame Detector ATEX Hazardous Area Zone 1,2
Ex 1 UV Flame Detector ATEX Hazardous Area Zone 1,2
Couldn't load pickup availability

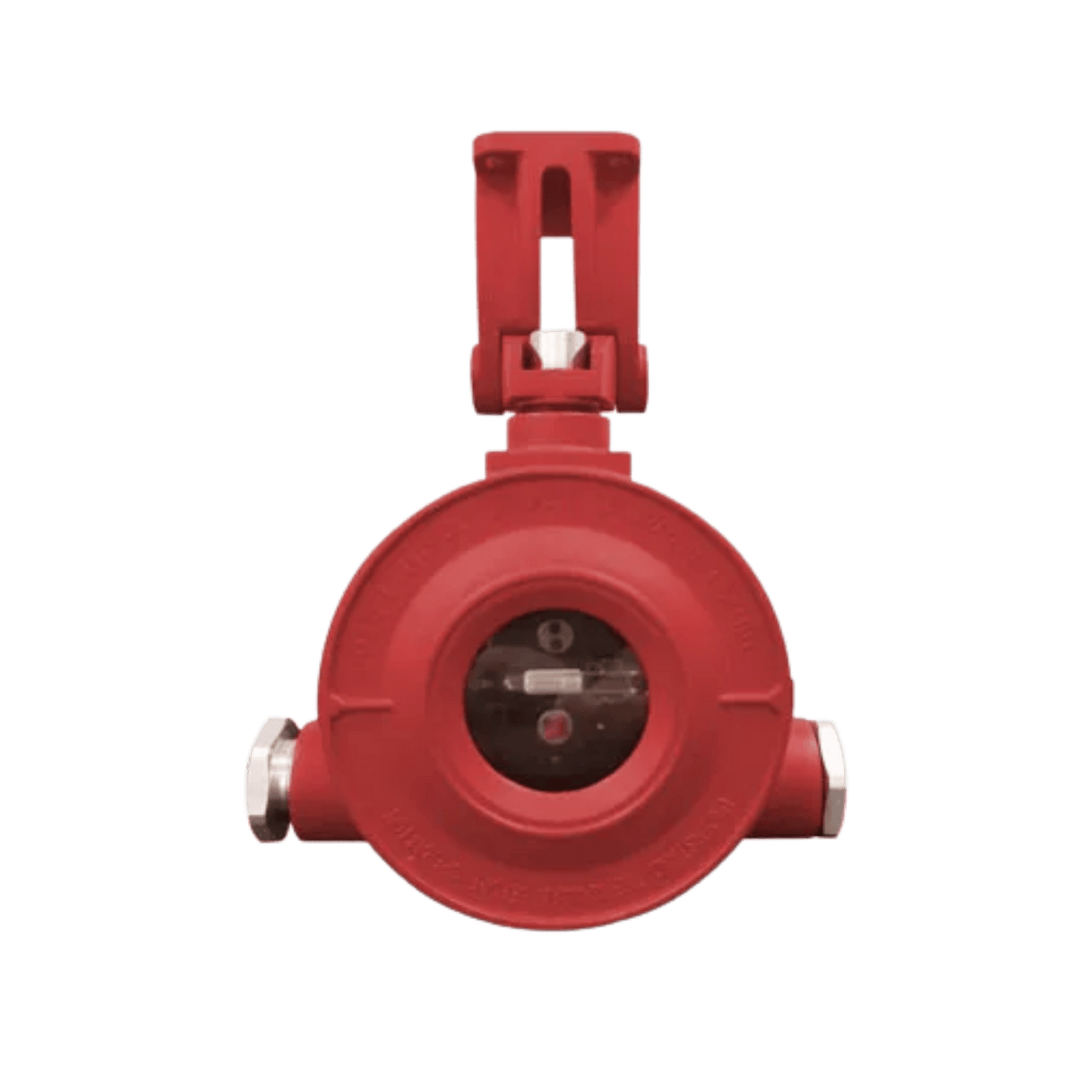

The AW-FD706EX Explosion-Proof UV Flame Detector is a compact, high-performance solution designed for fast and accurate fire detection in hazardous environments. Equipped with a Hamamatsu R2868 solar-blind UVTRON sensor (185–260nm) and a powerful 32-bit microprocessor, it delivers rapid response and high alarm accuracy using a patented signal processing algorithm. This lightweight, corrosion-resistant unit detects small fires up to 35 meters away and is suitable for various fuel types. Its false alarm resistance, low maintenance needs, and adaptability to harsh industrial settings make it a reliable, cost-effective safety choice.
Collapsible content
Technical Datasheet
Shipping
Shipping rates and delivery times are calculated at checkout.
Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.
We aim to process and get your delivery with you as quick as possible.
Please contact us to retrieve the estimate lead times for your order.
Guarantee
We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.
Warranty
• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
Please see our returns policy for more information.
How to videos
-
Hazardous Area Certified
Certification
Equipment Protection Level
- Exd ib IIC T6 Gb / Exib D tD A21 IP65 T85℃
- Exd ib IIC T6 Gb / Exib D tD A21 IP65 T85℃
-
Features
- high-speed, high-performance and low-power 32-bithigh chip.
- Fast-response UV optical sensor.
- Able to detect the small fire and flame earlier.
- Long detection distance: detect the distance up to 35m.
- Adaptability to multiple fuels types.
- Economical maintenance: Has a low maintaining cost and is easy to update and improve.
-
Specifications
- Corrosion-resistant cast aluminum.
- Electrical Interface: 1× 3/4 NPT, M25×1.5, or G3/4 option adapters)
- Operating Voltage: 24VDC (Range: 18–30VDC)
- Working Current: ≤50mA
- Signal Output:
Fire Alarm Relay: 1A @ 30VDC, NOC (normally open contact) - Fault Relay: 1A @ 30VDC, NOC
- Sensor Type: Hamamatsu R2868 solar-blind UVTRON
- Spectral Range: UV 185–260nm
- Detection Angle: 120° wide coverage
Applications
-
Oil & Gas
Monitoring for hydrocarbon fires in refineries, offshore platforms, and storage areas.
-
Chemical Plants
Detecting fires in environments with volatile substances.
-
Fuel Storage Depots
Ensuring safety in locations storing large quantities of flammable liquids.
Understanding UV Flame Detection Technology
UV flame detectors operate by sensing ultraviolet radiation emitted by flames. This technology allows for swift detection of fires, often within milliseconds, making it ideal for environments where rapid response is essential. The detectors are engineered to minimize false alarms by distinguishing between actual flame UV emissions and other UV sources.
ATEX-Certified UV Flame Detectors for Hazardous Areas
In industries where fire hazards are prevalent, such as oil and gas, chemical processing, and munitions manufacturing, early and accurate flame detection is crucial. ATEX-certified ultraviolet (UV) flame detectors are specifically designed to operate reliably in explosive atmospheres, providing rapid response to potential fire incidents.
