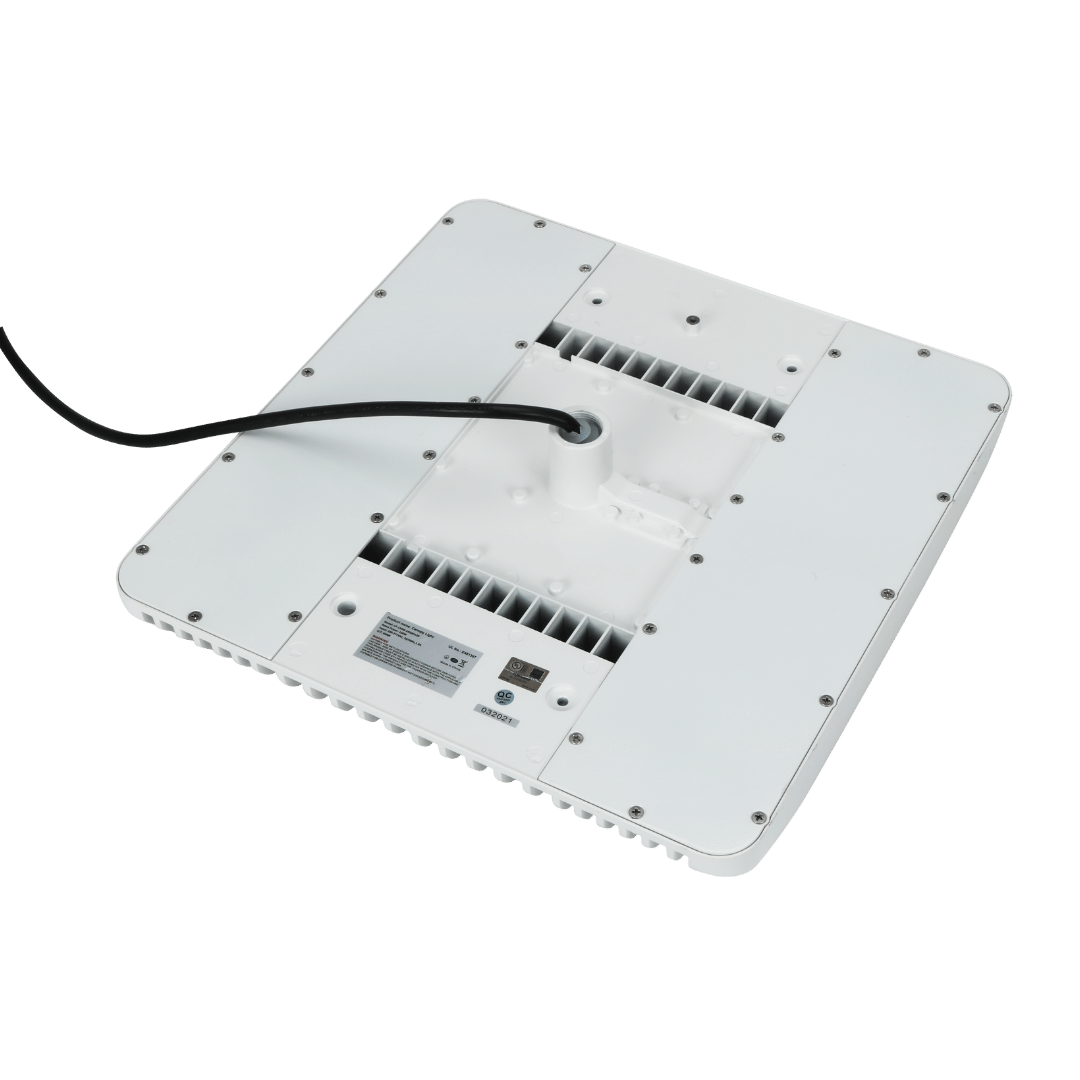

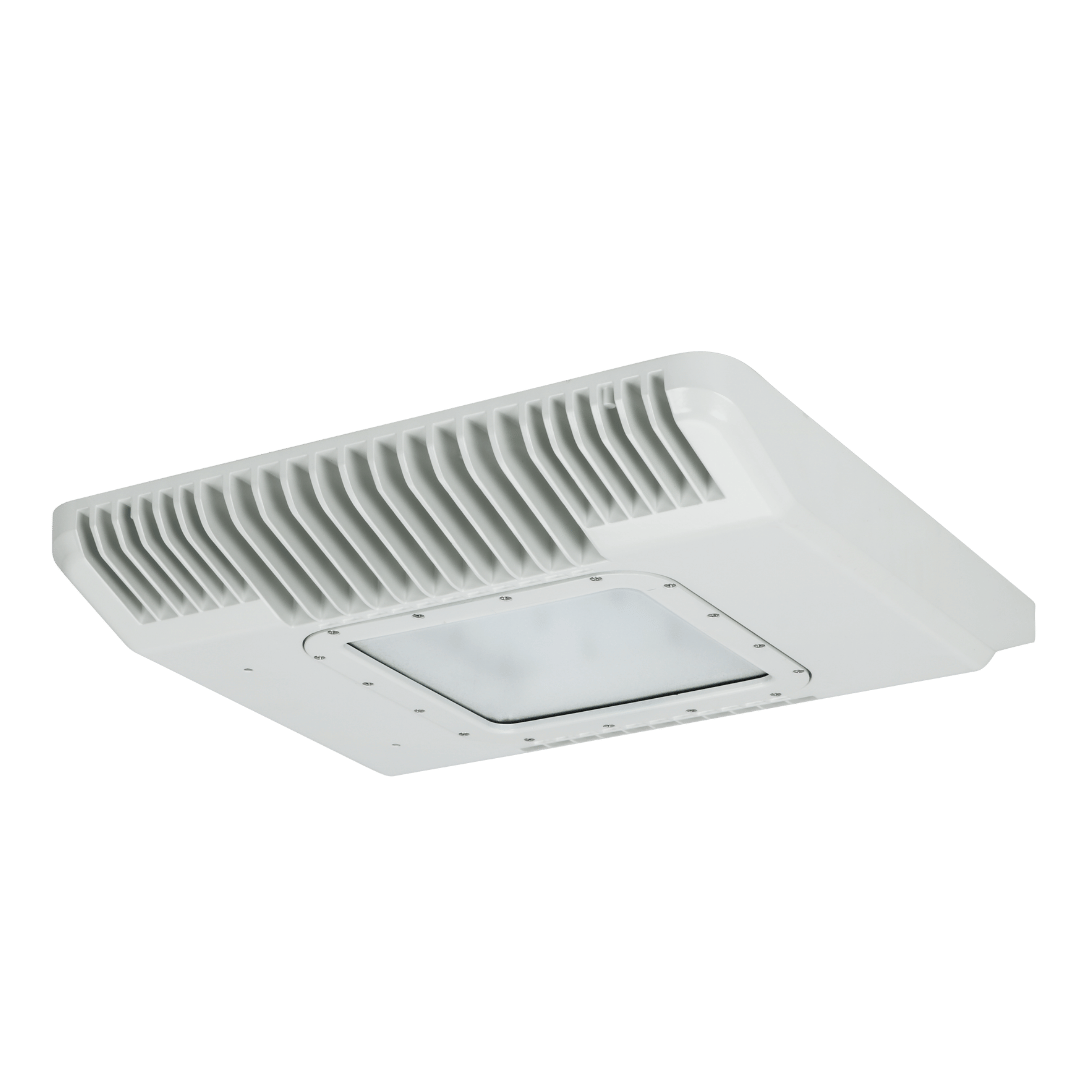

The CPA-Series Hazardous Area Canopy Gas Station Highbay LED Light, sets the stand in Ex rated explosion-proof lighting. Engineered to endure and perform in the relentless challenges of the industrial environments with moisture, dirt, dust, corrosion, and vibration.
Harnessing equipment protection levels of Ex ec / op Increased Safety and Optical Radiation technology, these LED lights are perfectly suited for the most challenging harsh atmospheric conditions found in industries such as gas stations, oil and gas, marine, petrochemical, chemical, petroleum, spray booths, and breweries. Covered by the IECEx and ATEX certification, brings a compliant solution to hazardous areas.
FEATURES
- Low Maintenance Design
- High LED Efficiency
- Thermal Heat Dissipation
- Ultra Wide Lens Angle
Collapsible content
Technical Datasheet
Shipping
Shipping rates and delivery times are calculated at checkout.
Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.
We aim to process and get your delivery with you as quick as possible.
Please contact us to retrieve the estimate lead times for your order.
Guarantee
We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.
Warranty
• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
Please see our returns policy for more information.
-
Hazardous Area Certified
Certification
- IECEx CQM 20.0002X
Zone EPL
IECEx
- Ex ec op is IIC T6/T5/T4/T3 Gc
- Ex op is tb IIIC T80°C/T95°C/T130°C/T195°C Db
The relationship of ambient temperature, temperature class and main electrical parameters is specified in "General
product information". -
Electrical
Lumens Per Watt:
- 130lm/W
Lumen Output:
- 60W=7,800lm 150W=19,500lm
Beam Angle:
- 120°
Input Voltage
- 100-277VAC, 50/60Hz / 12VDC / 36VDC
-
Construction
Housing Material
- Aluminium alloy ADC12
Diffuser
- Toughened glass
Protection
- IP66
Mounting
- Pole, Rope Pendant
Case Studies
-
Propane Transportation Facility
Propane transportation facility lighting design made by our lighting engineers. This install we used *3 40W Ex rated Zone 1 LED Jelly Jar lights, with mounted height of 4m. The propane transport area, measuring 2.4x12m achieved an average illumination of 12.9 foot-candles (fc).
-
Chemical Plant
Chemical plant lighting photometric design made by our lighting engineers. This install we used *4 150W Ex rated Zone 1 LED B-Series lights, with mounted height of 4.5m. The sub level grading height was 3m, and achieved an average illumination of 70fc while the main level ceiling was 4.2m with an illumination average of 34.5 fc.
-
Paint Booth
Spray paint booth lighting photometric design made by our lighting engineers. This install we used *9 60W Ex rated Zone 1 LED I-Series Linear Lights, used on a 12x2.4m paint booth with 2.7m ceilings. The fixtures were mounted on the wall and provided a maximum of 290 foot candles with a uniformity of 1.22-3.96.
Lighting Design
-
Illumination Mapping
2D and 3D mapping helps better placement of lighting, as a result of the colour view from the pseudo view of coverage. Resulting in cost effective solution to knowing exactly where and how many lights are needed.
-
3D Site Modelling
A professional addition to provide a detailed layout of the near real life site that includes all the construction variable on site. Visually seeing how object are effecting blind spots.
-
2D Light Positioning
Using your site drawing plans, we can plot the lights and draw a coverage area via the spread of lux levels, from the lights.
-
Explosion-proof Lighting
Hazardous area lighting refers to specialised lighting solutions engineered to minimise the risk of igniting flammable materials in environments prone to fire or explosion hazards. These high-risk zones, commonly called hazardous locations, are frequently found in industrial sectors such as chemical processing facilities, oil refineries, and mining operations. Designed with safety and durability in mind, hazardous area lighting ensures reliable illumination while meeting strict safety standards to protect both people and infrastructure.
-
Explosion-proof Compliant
Europe and many other countries adheres to the globally recognized ATEX and IECEx Standard, ensuring the highest safety and performance standards for hazardous environments. Our extensive range of lighting solutions complies with stringent safety certifications, making them ideal for use in high-risk areas. Trust our certified lighting products to deliver reliable and secure illumination in compliance with international and local regulations.
Pre & Post Sales Support
- We offer technical after sales support to ensure our clients are backed by our team.
- Whether you need support with custom project fabrication, calibration, on-site installation.
- We are here to bring a partnered business relationship with you.
- Our fulfilment warehouse has stocking capabilities for small or large projects.
Speak to our Technical Sales Team Today.
Explosion proof lighting is critical in areas where the presence of flammable gases and vapours or ignitable dust and fibres could possibly create a hazardous atmosphere. Designed to prevent and control the risk of ignition.
