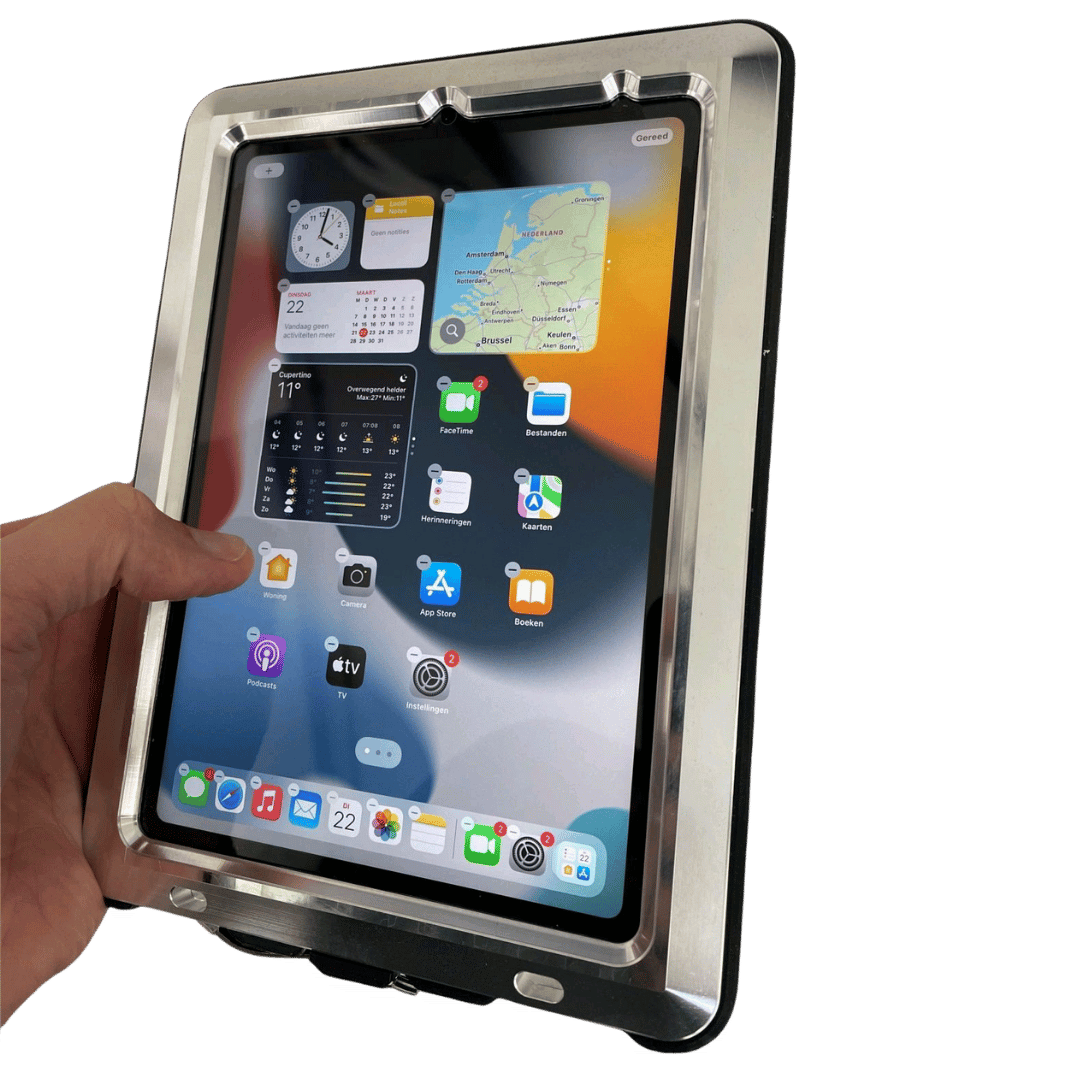

Ex iPad 6 Mini PC Computer Tablet - IECEx Hazardous Area Zone 1,2

Ex iPad 6 Mini PC Computer Tablet - IECEx Hazardous Area Zone 1,2

£4,899.95 GBP
£4,899.95 GBP
Sale Pre order now
Excluding VAT and Shipping is calculated at checkout.
9 in Stock Ready to Ship

The Apple iPad mini 6th generation now suitable for use in Zone 1 hazardous locations. Engineered with explosion flameproof casing to endure and perform in the relentless challenges of the industrial environments with moisture, dirt, dust, corrosion, and vibration in hazardous areas.

Harnessing equipment protection levels of Flamproof "db" and dust ignition protection by enclosure "tc". This ex tablet is perfectly suited for the most challenging harsh atmospheric conditions found in industries such as oil and gas, marine, petrochemical, chemical, petroleum, spray booths, and breweries. Made for compliance inspection, reporting and surveys with camera picture reporting. Covered by the IECEx and ATEX certification, brings a compliant solution to hazardous areas.

    View full details

    Main Features

    • Standard Analogue/SIP phone with door
    • 42CM vandal resistant handset and cord
    • Standard IP 66 weatherproof rating
    • Full rubber keypad with memory,0-9 buttons can be programmed as speed dial button.
    • “LR” button for last number redial
    • “R” for flash recall
    • “M” for muting
    • Phone line powered (Analogue)
    • POE or DC12V powered (SIP )
    • RJ45 port for SIP connection
    • on wall mounting with mounting bar
    • II 2G Ex e ib [ib] mb IIC T4 Gb
    • III 2D Ex ib [ib] tb IIIC T135 °
    • Zone 1 & Zone 2
    • ATEX,CE,FCC,RoHs compliant

    Analog Specfications

    Standard Analogue

    As a standard analogue telephone, this unit provides basic telephone functions and can be connected to any standard two-wire telephone line, including analogue PABX lines and PSTN.

    ANALOGUE

    Dialing

    MF (tone)

    Power supply

    Drawn from telephone line

    Lightning / Transients

    Protection to ITU-T k.21 enhanced levels

    Programming

    Can be programmed remotely by DTMF tone or use keypad

    TECHNICAL SPECIFICATIONS

    Casing Material

    Die cast aluminium,epoxy powder coated.

    Handset Material

    With Noise cancelling microphone, for effective communication from noisy areas(Armoured SS cord stands up to rough treatment, optional for black curly cord )

    Hook switch

    Electronic / magnetic with no visible moving parts

    Keypad

    Rubber Keypad

    Temperature

    T4

    Weather Resistance

    IP66(standard)~ IP67(highest rating)

    Ringing Tone

    Shrill warble tone 80 dBA @ 1 metre typical  (Analog)

    Shrill warble tone 90 dBA @ 1 metre typical  (SIP)

    M.T.B.F.

    Calculated to have an M.T.B.F. in excess of 50,000 hours using

    SIP/VoIP Specifications

    SIP-VoIP TECHNICAL SPECIFICATIONS

    Power:

    12V DC or PoE: IEEE802.3af/at

    Port:

    WAN: 10/100Base- T RJ-45 for LAN, Auto MDIX

    LAN: 10/100Base- T RJ-45 for PC, Auto MDIX

    Power Consumption:

    Idle:1.5W/ Active:1.8W

    Voice Features

    • Support SIP 2.0 (RFC3261)
    • Codec: G.711A/u, G.7231 high/low, G.729, G.722
    • Echo cancellation: Support G.168 and hand-free can support 96ms
    • Supports full duplex
    • SIP support SIP domain,SIP authentication(none, basic,MD5),DNS name of server
    • DTMF:SIP info, DTMF Relay,RFC2833
    • Call control feature:Flexible dial map,support hot-line

    Network Features

    • WAN/LAN: support Bridge mode
    • Support static IP address
    • Support DHCP get IP on WAN port
    • Support VLAN
    • Support web config
    • Data Protocols: IPv4, TCP, UDP, ICMP, ARP, DNS and DNS SRV for SIP Signalling

    Package Size

    PACKAGE

    unit size: 246 *339 *126 (mm)

    Carton size:200*300*440 ( mm )

    Packaging materials: pearl cotton, carton

    Gross weight: 9KG

    Net weight: 8KG

    Shipping

    Shipping rates and delivery times are calculated at checkout.

    Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.


    We aim to process and get your delivery with you as quick as possible.

    Please contact us to retrieve the estimate lead times for your order.

    Please see our shipping policy for more details

    Guarantee

    We aim to provide you with the best quality products, if for an unfortuante product defect we have a 14 day money back return guarantee.

    Please see our returns policy for more information.

    Certification

    This product has the following explosion protection:

    CE

    Radio & Telecommunications Terminal Equipment Directive - 2004/108/EC

    FCC

    FCC Part 15 Subpart B Class B

    ATEX


    II 2G Rx e ib [ib] mb IIC T6 Gb


    III 2D Ex ib [ib] tb IIIC T135 °


    -40 °C ≤ Ta ≤ +60 °C/+40°C


    Zone 1, 2, 22
