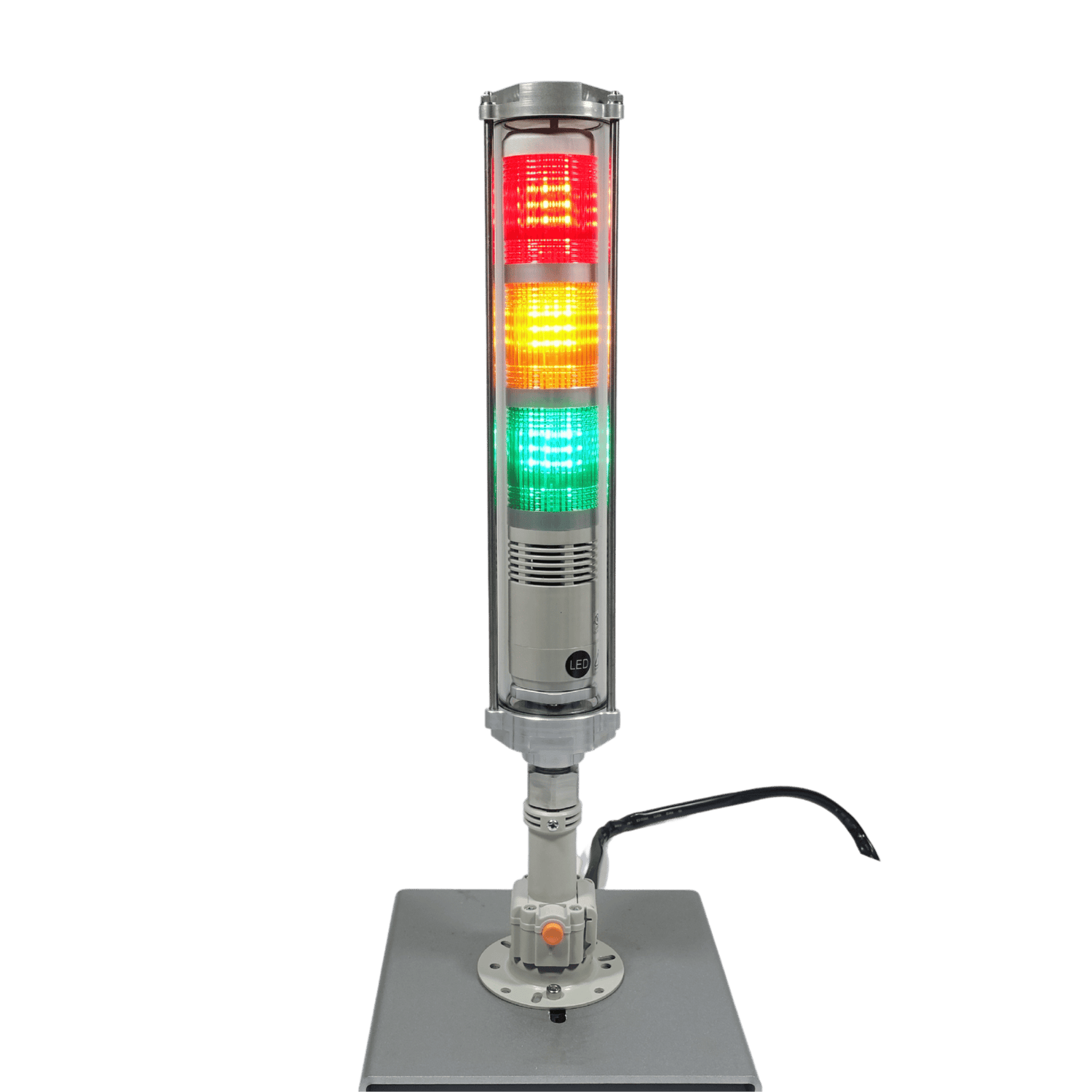

Ex Indicator Signal Tower Alarm Light - IECEx ATEX Hazardous Area Zone 2
Ex Indicator Signal Tower Alarm Light - IECEx ATEX Hazardous Area Zone 2
Couldn't load pickup availability
Enhance safety in hazardous areas with our Explosion-Proof LED Tower Light, specifically designed for IECEx and ATEX Zone 2 (gas) and Zone 21 (dust) applications. Built to meet strict Equipment Protection Level (EPL) 'ec' and 'tb', this robust tower light offers reliable visual and audible signalling in environments prone to explosive gas and dust.
-
Certified Explosion Protection: Ex ec IIC T4 Gc, Ex tb IIIC T80°C Db (-20°C ≤ Ta ≤ +40°C)
-
Durable Construction: A356.2 aluminium alloy body and high-impact PC tube
-
IP67 / NEMA 6 Rated: Exceptional protection against water, dust, and harsh environmental conditions
-
Audible Alert: 80dB buzzer ensures clear sound signalling, tested at 1 meter away
-
Multi-Color Options: Red, Orange, Green, Blue, and White LED indicators
Collapsible content
Technical Datasheet
Shipping
Shipping rates and delivery times are calculated at checkout.
Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.
We aim to process and get your delivery with you as quick as possible.
Please contact us to retrieve the estimate lead times for your order.
Guarantee
We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.
Warranty
• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
Please see our returns policy for more information.
-
Hazardous Area Certified
IECEx Certification
- Ex ec IIC T4 Gc
- Ex tb IIIC T80°C Db
ATEX Certification
- II 3 G Ex ec IIC T4 Gc
- II 2 D Ex tb IIIC T80°C Db
-
Features
- Available with or without terminal box and buzzer.
- Single-color light can be used as a warning light, eye-washer indicator.
- Configurable flashing / non flashing / various colours / voltage input
- Mounting Bracket Type
W90=Wall Mount
C90=Ceiling Mount
S=Pole Stand
F=Foldable Mount
T=Pole Mount
-
Construction
Rated Voltage: 12V / 24V DC ; 12V / 24V / 110V / 220V AC
Ambient Temperature: -20°C ~ +40°C
Colour: Red, Orange, Green, Blue, White
Frequency: 50 / 60 Hz (AC)
Degree of Protection: IP67 / NEMA 6
Material: Aluminum Alloy(Body) and PC(Lens)Buzzer Volume: 80 dB
Case Studies
-
Propane Transportation Facility
Propane transportation facility lighting design made by our lighting engineers. This install we used *3 40W Ex rated Zone 1 LED Jelly Jar lights, with mounted height of 4m. The propane transport area, measuring 2.4x12m achieved an average illumination of 12.9 foot-candles (fc).
-
Chemical Plant
Chemical plant lighting photometric design made by our lighting engineers. This install we used *4 150W Ex rated Zone 1 LED B-Series lights, with mounted height of 4.5m. The sub level grading height was 3m, and achieved an average illumination of 70fc while the main level ceiling was 4.2m with an illumination average of 34.5 fc.
-
Paint Booth
Spray paint booth lighting photometric design made by our lighting engineers. This install we used *9 60W Ex rated Zone 1 LED I-Series Linear Lights, used on a 12x2.4m paint booth with 2.7m ceilings. The fixtures were mounted on the wall and provided a maximum of 290 foot candles with a uniformity of 1.22-3.96.
Lighting Design
-
Illumination Mapping
2D and 3D mapping helps better placement of lighting, as a result of the colour view from the pseudo view of coverage. Resulting in cost effective solution to knowing exactly where and how many lights are needed.
-
3D Site Modelling
A professional addition to provide a detailed layout of the near real life site that includes all the construction variable on site. Visually seeing how object are effecting blind spots.
-
2D Light Positioning
Using your site drawing plans, we can plot the lights and draw a coverage area via the spread of lux levels, from the lights.
-
Rugged & Durable
Lighting for hazardous atmospheres has be designed to withstand the potentially harsh conditions such as bad weather or impact resistant.
-
Explosion Proof Compliant
Australia has adopted the international IECEx Standard. We have a range of safety standards and certifications for use in hazardous environments with all lighting we supply.
Pre & Post Sales Support
We offer after sales support on a wide range of our products including:
- Design
- Selection
- Engineered Fabrication
- Installation
- Configuration
- Maintenance
- Repair
- Calibration
Speak to our Technical Sales Team Today.
Customisable LED Segments: Available with 1 to 5 stackable LED sections in red, orange, green, blue, white. The sequence and combination can be tailored to specific operations.
Audible Alerts: Equipped with an 80 dB buzzer, ensuring audible warnings even in high-noise environments.
Flexible Configurations: Options include versions with or without a terminal box and buzzer, as well as flashing or steady light modes.
Rugged Construction: Features IP67/NEMA 6 protection, making it dust-tight and water-resistant.
Wide Voltage Compatibility: Supports 12V/24V DC and 110V/220V AC inputs.
