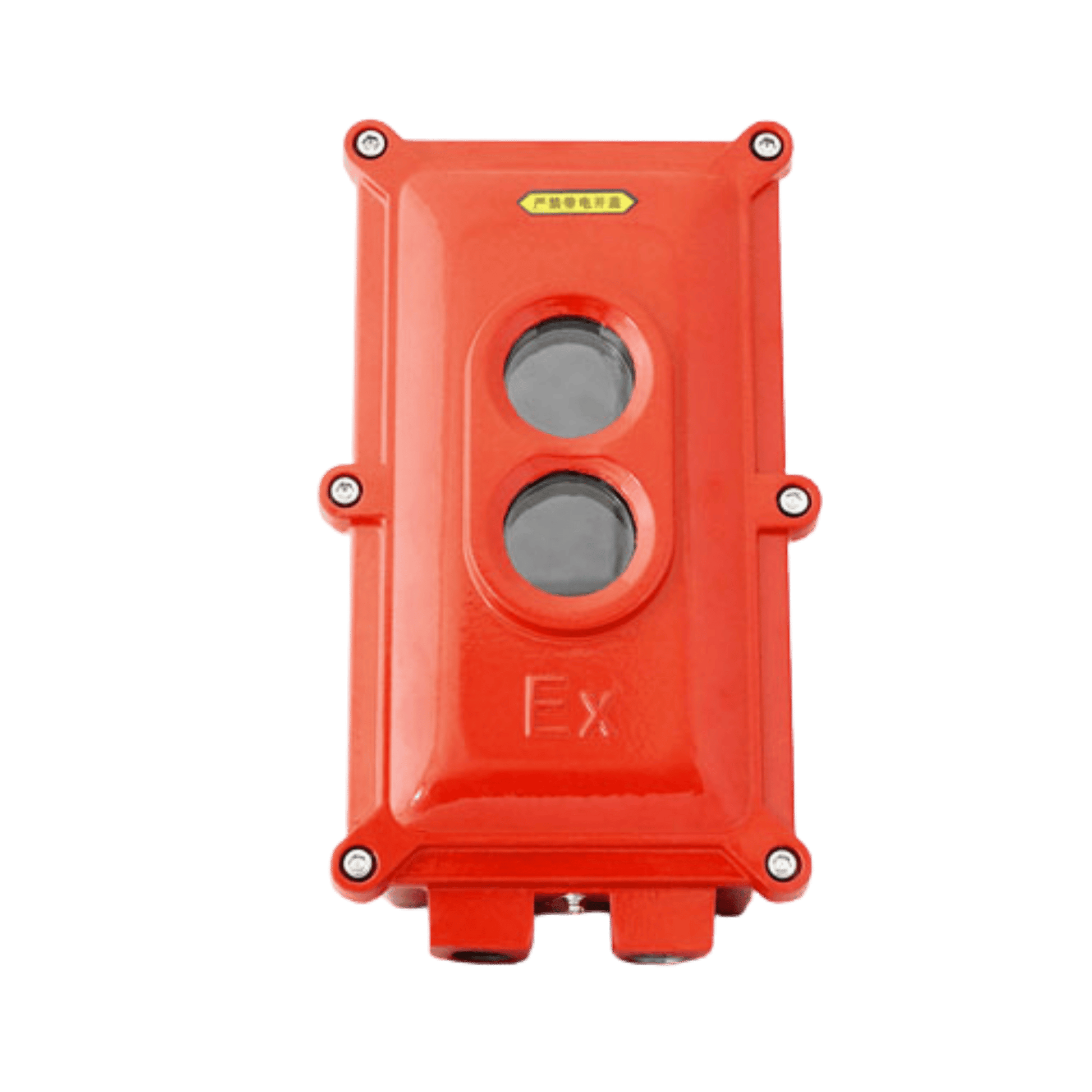

Ex Reflective Infrared Smoke Beam Detector ATEX Hazardous Area Zone 1,2

Ex Reflective Infrared Smoke Beam Detector ATEX Hazardous Area Zone 1,2

Regular price £877.95 GBP
Regular price Sale price £877.95 GBP
Sale Pre order now
Excluding VAT and Shipping is calculated at checkout.

The Explosion-Proof Infrared Beam Smoke Detector is a state-of-the-art, reflective linear infrared beam smoke detector designed for use in hazardous environments. Complying with GB3836.1-2000 standards for electrical equipment in explosive gas atmospheres, this detector is ideal for large areas, elevated racks, and long-distance applications where early smoke detection is critical.

View full details

Collapsible content

Technical Datasheet

Shipping

Shipping rates and delivery times are calculated at checkout.

Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.


We aim to process and get your delivery with you as quick as possible.

Please contact us to retrieve the estimate lead times for your order.

Please see our shipping policy for more details

Guarantee

We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.

Warranty

• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.

Please see our returns policy for more information.

  • Hazardous Area Certified

    Certification

    Equipment Protection Level

    • Exd ib IIC T6 Gb / Exib D tD A21 IP65 T85℃



  • Features

    • Low Power Consumption: Operates at 24V±2V DC with a monitoring current of ≤60μA and an alarm current of ≤30mA, optimizing energy efficiency.
    • Versatile Alarm Outputs: Equipped with both Normally Open (NO) and Normally Closed (NC) passive contact outputs for flexible integration with various alarm systems.
    • Precise Sensitivity: Smoke response threshold ranges from 0.10 dB/m to 0.27 dB/m, ensuring accurate detection.
    • Reliable Alarm Reset: Features an instant power cut-off reset mechanism (minimum 10 seconds, maximum 2.5V DC) for swift system recovery.
  • Specifications

    Operating Voltage: 24V±2V DC (non-polarity)

    Monitoring Current: ≤60μA

    Alarm Current: ≤30mA

    Alarm Outputs: One pair each of NO and NC passive contact outputs

    Smoke Sensitivity: 0.10 dB/m to 0.27 dB/m

    Alarm Reset: Instant power cut-off (10s Min, 2.5V DC Max)

  • Oil & Gas

    This sector is one of the most high-risk environments for fire and explosion, making ATEX smoke and heat detection indispensable.

    • Installed in living quarters, control rooms, compressor rooms, and helidecks to detect smoke from electrical faults or equipment overheating.
    • Deployed in processing units, control buildings, and storage tank zones where flammable gases and vapors are present.
    • Positioned near valves, fuel pumps, and gantries to provide early warning in case of leaks or combustion.
  • Manufacturing and Processing Plants

    Facilities that process volatile chemicals require continuous air monitoring and reliable early fire detection.

    • Solvent Storage Rooms: Detect smoke from spontaneous combustion or faulty electrical equipment.
    • Reactor & Mixing Areas: Placed above or around reactors where exothermic reactions may cause overheating or fires.
    • Cleanrooms & Laboratories: Sensitive enough to detect smoke without disrupting delicate operations; certified enclosure ensures safe installation in explosive environments.
  • Industrial Manufacturing & Fabrication

    Many manufacturing operations involve combustible materials or high-voltage equipment.

    • Prevents ignition of aerosolized paints and solvents.
    • Used near extrusion machines or chemical mixing areas where fumes and particles can become ignition sources.
    • Detects overheating or smoke from spark-prone processes.

How to wire video

Why Choose This dual ATEX Smoke & Heat Detector?

Equipped with both photoelectric smoke sensing and thermal detection, the AW-CSH831EX-4W offers a comprehensive approach to fire detection. This dual-sensor technology enables the detector to promptly identify both smoldering fires and rapidly growing flames, ensuring timely alerts and responses.


With a smoke response threshold ranging from 0.10 dB/m to 0.27 dB/m, the detector offers precise sensitivity to smoke particles, enhancing its ability to detect fires at an early stage.

Energy Efficiency and Versatile Integration

Operating at 24V±2V DC with a monitoring current of ≤60μA and an alarm current of ≤30mA, this detector is designed for energy efficiency. Its low power consumption makes it an ideal choice for facilities aiming to reduce energy costs without compromising safety.

The detector features both Normally Open (NO) and Normally Closed (NC) passive contact outputs, allowing for flexible integration with various alarm systems and control panels. This versatility ensures that the AW-CSH831EX-4W can be seamlessly incorporated into existing safety infrastructures.
