Ex Sampling Point Fixed Gas Detector Monitor - IECEx ATEX Hazardous Area Zone 1,2
Ex Sampling Point Fixed Gas Detector Monitor - IECEx ATEX Hazardous Area Zone 1,2
Couldn't load pickup availability

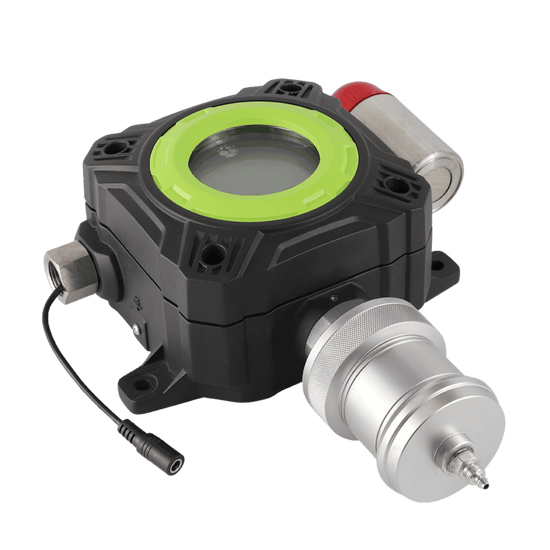

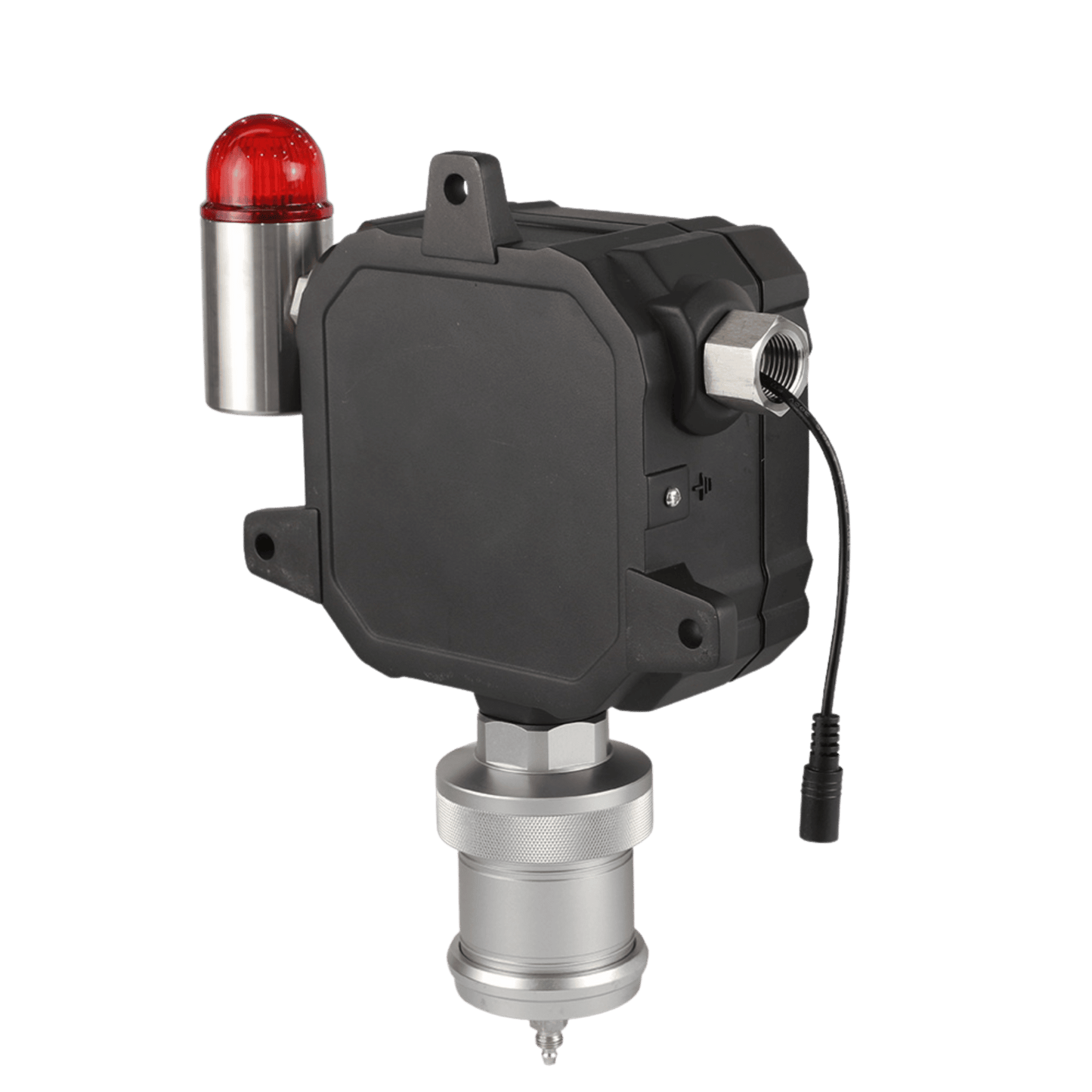

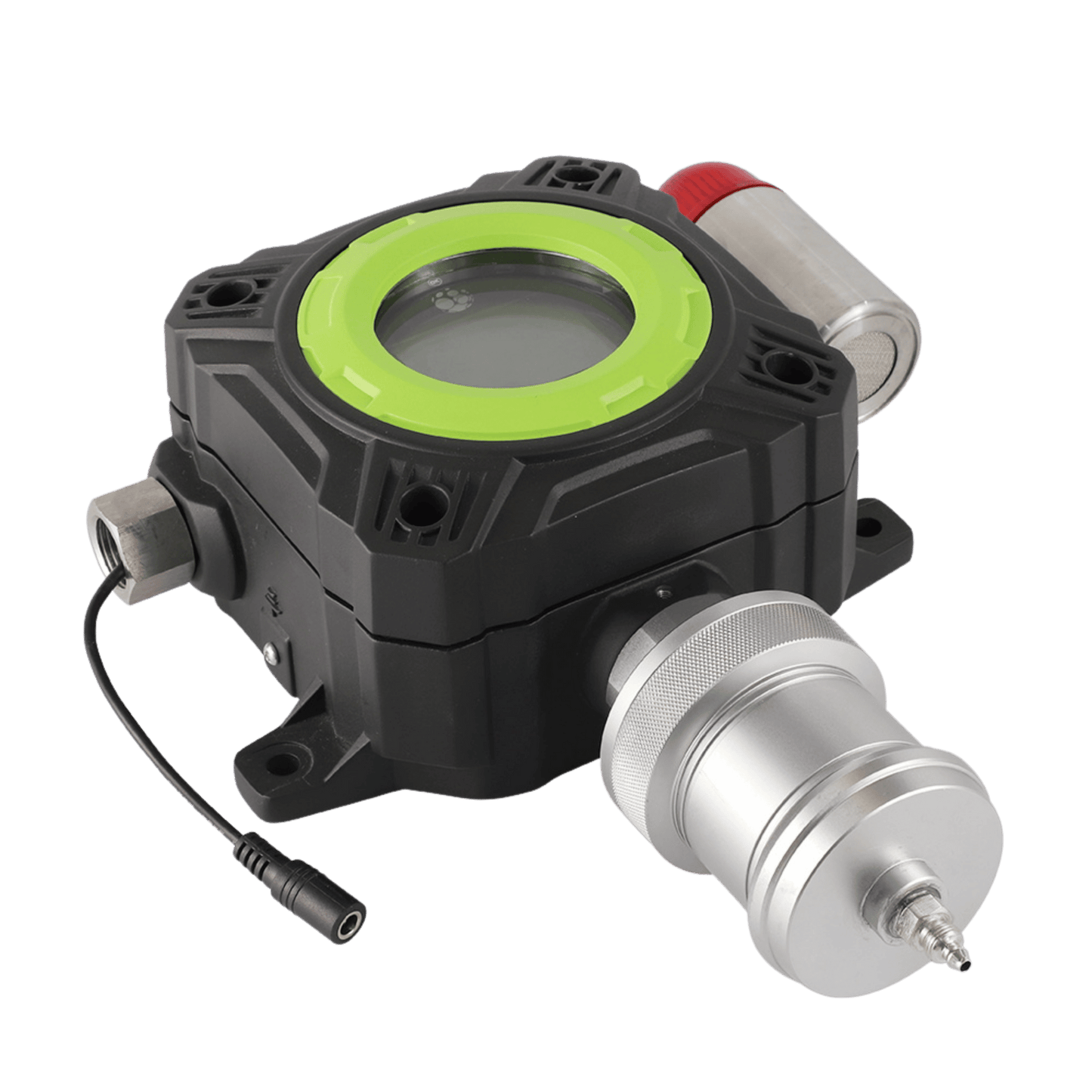

Sampling Point Fixed Gas Detector Monitor with built-in suction pump for sampling and up to 6 kinds of gases can be detected at the same time. This gas detector sets the stand in Ex rated explosion-proof gas detection. Engineered to endure and perform in the harsh challenges of the industrial environments with moisture, dirt, dust, corrosion, and vibration.
Harnessing equipment protection levels of Intrinsic Safety "ia", Flameproof "db". Suited for the most challenging hazardous atmospheric conditions found in industries such as oil and gas, marine, petrochemical, chemical, petroleum, manufacturing etc. Covered by the IECEx and ATEX certification, brings a compliant solution to hazardous areas.
Standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output. making it compatible with most control systems. Additional magnetic wand design, it’s easier to navigate the control menu.
Collapsible content
Technical Datasheet
Shipping
Shipping rates and delivery times are calculated at checkout.
Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.
We aim to process and get your delivery with you as quick as possible.
Please contact us to retrieve the estimate lead times for your order.
Guarantee
We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.
Warranty
• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
Please see our returns policy for more information.
Calibration
To ensure you keep up to date with your metrology requirements, by adding the traceable standards calibration test report certificate.
-
Hazardous Area Certified
Equipment Protection Level
ATEX / IECEx
- Ex db IIC T6 Gb
-
Features
Modular gas chamber for maintenance simply and conveniently
- Plug and play air chamber module replacement.
- Two-key magnetic bar design, no need to open the cover, to achieve on-site maintenance and operation of the detector in any explosion-proof area.
- 24h continuously monitoring, data will real-time display.
-
Features
- Standard 4-20mA current signal, RS485 digital signal, 1 set of relay signal output
- Optional 2 groups of relay signals, voltage 1 ~ 5V, standard Hart
- Optional LORA, 4G and other wireless transmission.
- Can be installed with computer software, to transmit the data to computer, workers can remote monitor the data
- Die-cast aluminium case, IP66/67 protection degree, water-proof, dust-proof, explosion-proof.
Introduction Video to the YT-98H
Applications
-
Chemical & Petrochemical Plants
Location: Process rooms, tank farms, valve skids.
Use: Detect toxic or flammable gas leaks before they pose a threat to personnel or operations. -
Wastewater Treatment Facilities
Location: Sludge digesters, underground pits, and sewer access points.
Use: Monitor for hydrogen sulfide (H₂S) or methane buildup from a central location without manual entry. -
Laboratories and Clean Rooms
Location: Fume hoods, storage cabinets, or isolated experiment chambers.
Use: Ensure containment of toxic gases or chemical vapors without disturbing the controlled environment.
What Is a Sampling Pump Type Gas Detector?
A sampling pump gas detector is a gas detection device equipped with a built-in or external pump that actively draws air from a specific location—such as a confined space, duct, tank, or pipeline—into the sensor chamber for analysis.
Unlike diffusion-type gas detectors that rely on natural air movement, sampling pumps provide a proactive approach to gas detection, making them ideal for hard-to-reach or hazardous areas.

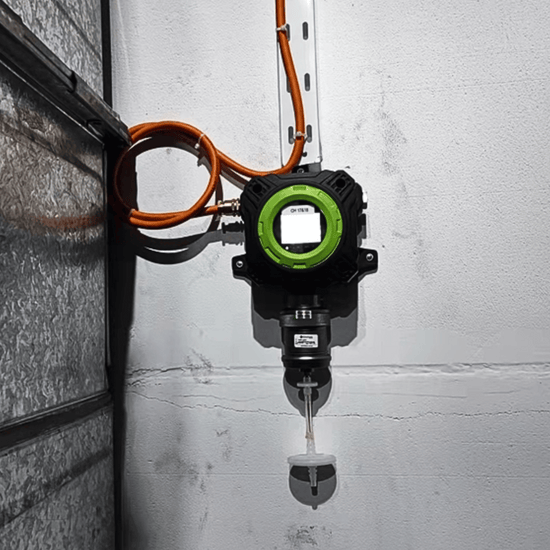

A fixed wall-mounted sampling pump gas detector is a permanently installed device designed to actively draw air from remote or enclosed areas into the detector using a pump. Unlike standard diffusion sensors that rely on ambient airflow, these units use forced air sampling through tubing—making them ideal for challenging environments or remote detection points.
These detectors are often installed in control rooms, outside confined spaces, or in designated hazardous zones where continuous monitoring is critical.
Why Use a Fixed Sampling Pump Gas Detector?
1. Remote Monitoring
Ideal for inaccessible or dangerous zones, allowing continuous monitoring without entering hazardous areas.
2. Improved Accuracy
Actively draws in air samples, reducing the chance of false readings due to stagnant air pockets.
3. Multiple Point Sampling
One detector can sample air from multiple locations using solenoid valves and switching manifolds.
4. Regulatory Compliance
Many industries require continuous monitoring in confined or enclosed spaces to meet safety regulations such as:
AS/NZS 60079
OSHA 29 CFR 1910.146
IECEx & ATEX standards for explosive atmospheres
