Ex SO2, O2 Gas Detector - Sulfur dioxide, Oxygen Toxic Monitor - IECEx ATEX
Ex SO2, O2 Gas Detector - Sulfur dioxide, Oxygen Toxic Monitor - IECEx ATEX
Couldn't load pickup availability

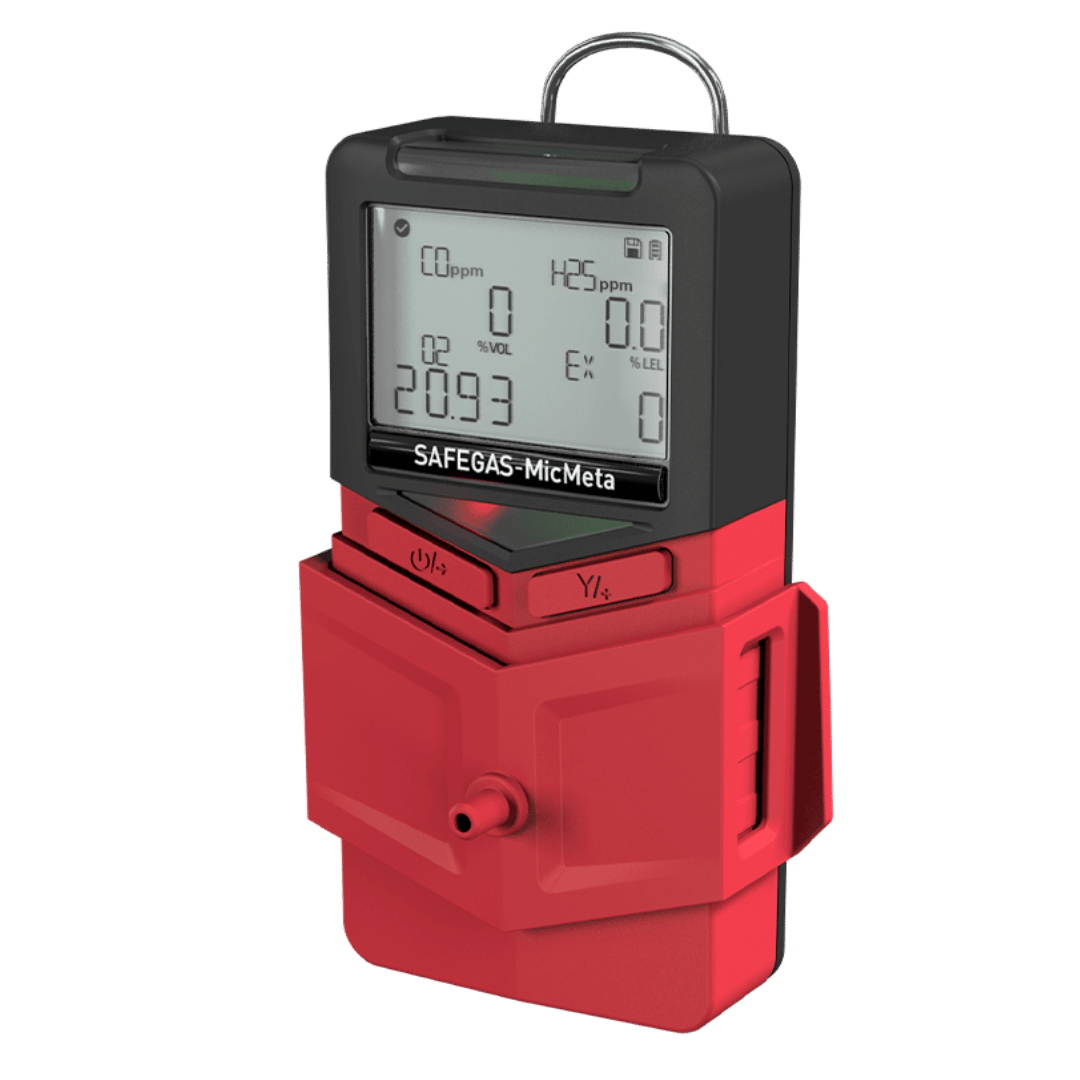

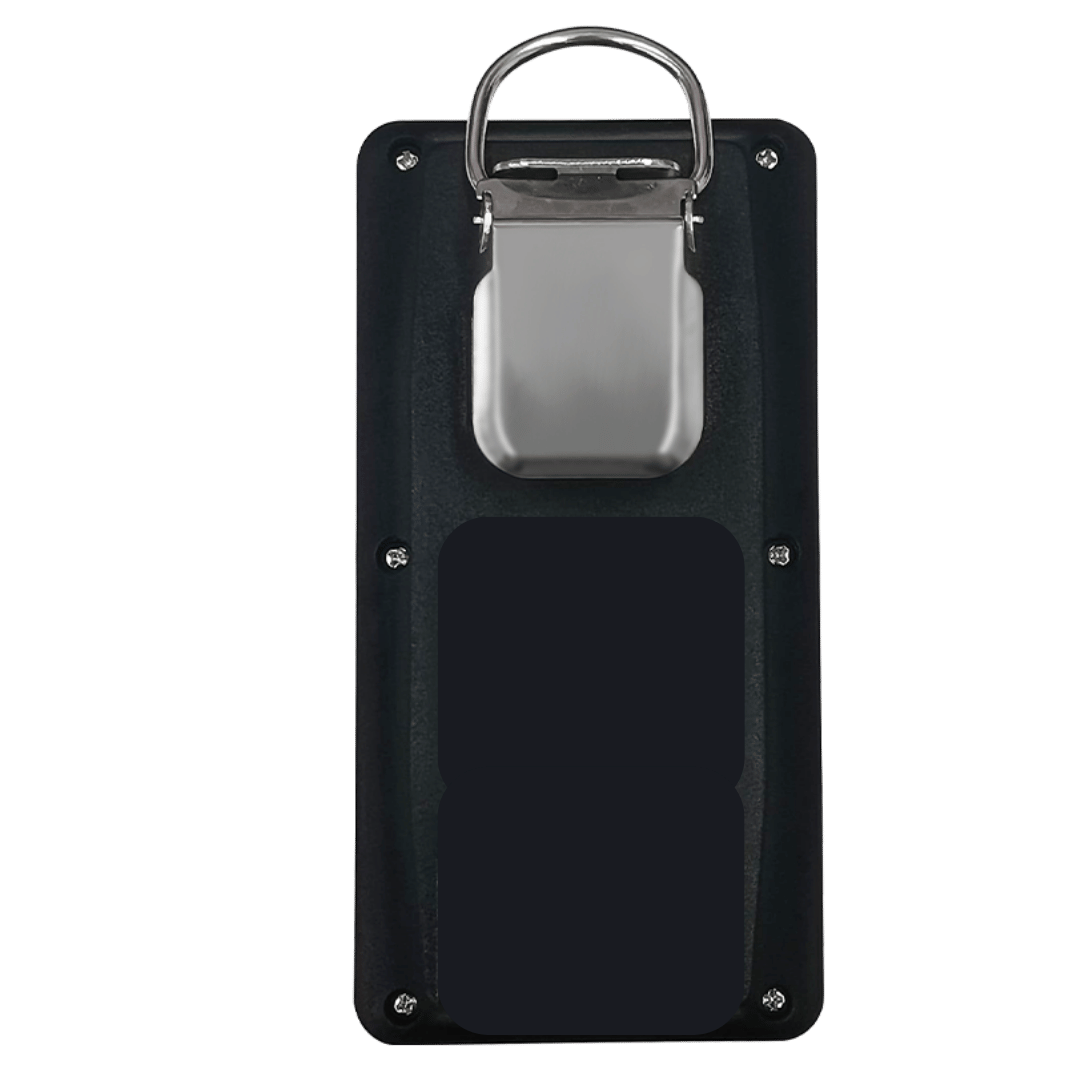

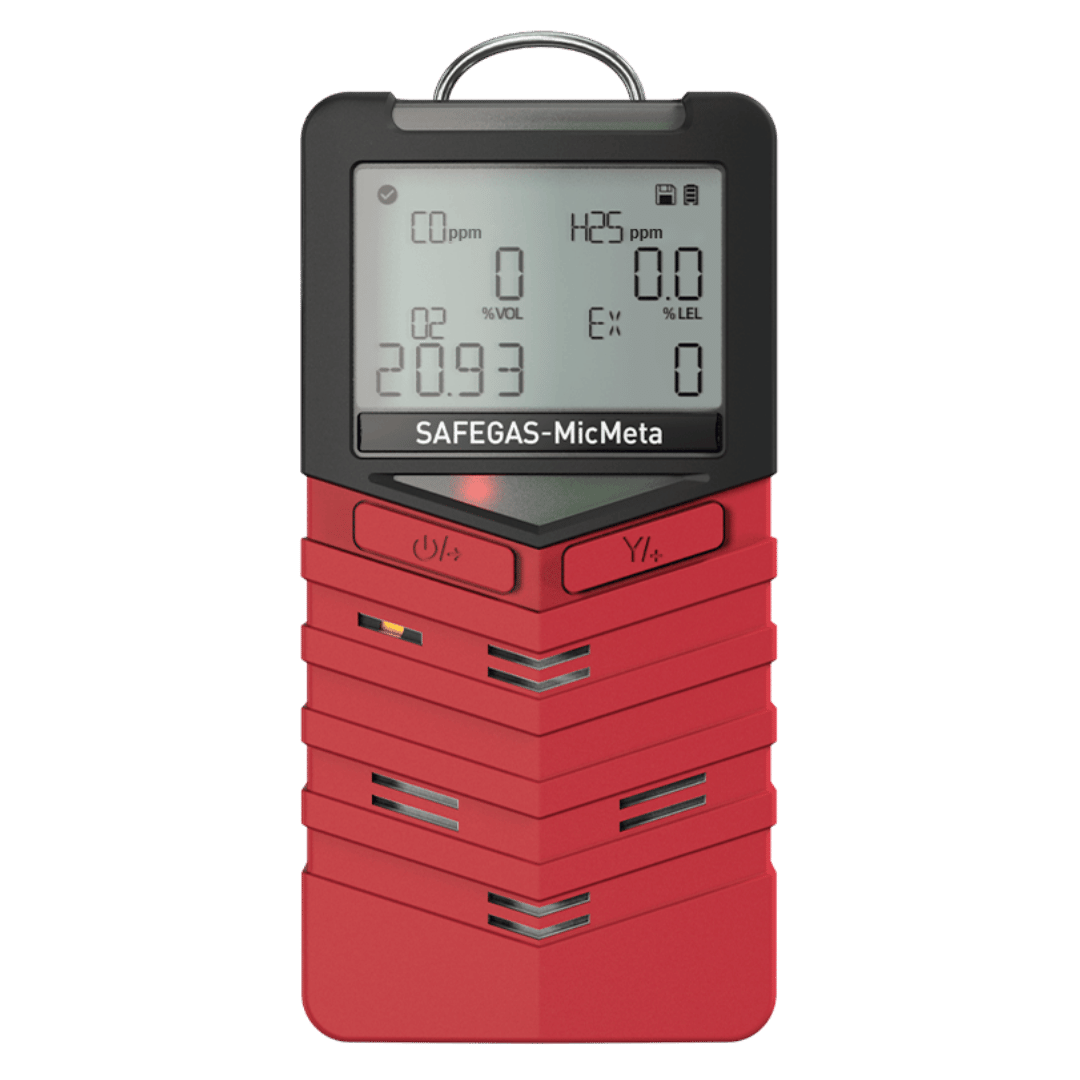

The Micmeta-R2 SO₂ and O₂ Gas Detector is a high-performance gas monitoring device designed for accurate and real-time detection of sulfur dioxide (SO₂) and oxygen (O₂) levels in various applications. This robust and easy-to-use detector enhances workplace safety, ensures regulatory compliance by providing precise gas concentration readings.
Key Features:
- IP66/IP68 water & dust resistant
- Standard man down alarm ,password protection, ID identification function
- Real time value, TWA, STEL, MAX, MIN multiple numerical display
- self-test function, which can improve safety by automatic self-test
- Wireless data transmission including Lora, Bluetooth (Optional)
- With docking station to perform daily bump test and calibration (Optional)
- Data recording - 1000 sets data records and 100 sets events records
Equipment protection levels of Intrinsic safety "ia". Suitable for harsh atmospheric conditions found in industries like; oil and gas, marine, petrochemical, chemical processing, petroleum, and more. Covered by the IECEx and ATEX certification, brings a compliant solution to hazardous areas. Ex ia I Ma / Ex ia IIC T4 Ga which is applicable to the explosive gas mixture zone 0, zone 1, and zone 2 of the factory with grades ⅡA , ⅡB , and ⅡC and temperature group T1~T4 as well as coal mines.
Collapsible content
Technical Datasheet
Shipping
Shipping rates and delivery times are calculated at checkout.
Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.
We aim to process and get your delivery with you as quick as possible.
Please contact us to retrieve the estimate lead times for your order.
Guarantee
We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.
Warranty
• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
Please see our returns policy for more information.
Calibration
To ensure you keep up to date with your metrology requirements, by adding the traceable standards calibration test report certificate.
-
Hazardous Area Certified
IECEx:
- Ex ia IIC T4 Ga
- Ex ia I Ma
ATEX:
- Ex II 1G Ex ia IIC T4 Ga
-
Features
- Alarm with sound, light and vibration, alarm point is settable. Man down alarm function.
- Large capacity of lithium polymer battery
- Sensor type: Diffusion type
- Protection grade: IP66/IP68
-
Features
- Real-time value, TWA, STEL, MAX, MIN multiple numerical display
- Datalogger function, can store 1000 sets events and 100000 sets records, the data can be download to PC by USB cable
- Dimension: 113*60*32mm Weight: 200g
Applications
-
Oil & Gas
Monitoring emissions produced during the extraction of oil and natural gas, particularly in environments where combustion-based machinery is used for drilling and operation.
Detect gas leaks in equipment like generators, gas-powered engines, and gas flaring systems, which are common in offshore platforms and remote onshore extraction sites.
Ensure the safety of workers by providing early warning of dangerous level concentrations that could arise in confined or poorly ventilated spaces like drill rigs and pumping stations.Monitor emissions from various processing units, including distillation columns, reactors, and furnaces where crude oil is refined into valuable products like gasoline, diesel, and jet fuel.
Detect gas produced by incomplete combustion of feedstock or flaring during chemical reactions.
Control and optimize ventilation systems to ensure that CO is properly diluted and vented out of the facility. -
Manufacturing and Processing Plants
Monitor gas emissions from combustion processes, reactors, furnaces, and boilers where heat is generated through the burning of fossil fuels or from chemical reactions that produce CO as a byproduct.
Detect gas leaks or inefficiencies in combustion within reactors, distillation columns, or mixer systems used in chemical synthesis.Monitor concentrations in furnaces, smelting pots, casting rooms, and welding stations where CO is generated as a byproduct of combustion and metalworking processes.
Detect gas in confined spaces such as blast furnaces and welding rooms, where high temperatures and fuel combustion often occur.Monitor emissions around welding stations, paint booths, and fuel-burning equipment used during the production and assembly of vehicles.
Detect gas in confined spaces where exhaust fumes may be generated from gas-powered welding equipment or automotive testing processes. -
Mining Industry
Monitor gas levels in underground tunnels, mining shafts, and ventilation shafts where gas can accumulate due to equipment operation, blasting, and the natural combustion of coal or minerals.
Detect gas near diesel-powered mining vehicles, generators, and ventilation fans.
Ensure that worker exposure to gas is continuously assessed to maintain air quality within safe limits.Continuously monitor CO levels in mine ventilation systems to ensure that hazardous gases, including CO, are effectively removed from the mine and replaced with clean air.
Use CO gas detectors to monitor the performance of ventilation fans, airflow systems, and exhaust ducts that are used to dilute CO and maintain air quality.
Ensure that CO concentrations remain below permissible limits for workers operating in enclosed or poorly ventilated spaces.
Characteristics of CO gas
Carbon monoxide (CO) is a colorless, odorless, and highly toxic gas produced by the incomplete combustion of carbon-containing fuels. Due to its lack of detectable scent, CO is often referred to as the "silent killer," making exposure prevention and detection critically important in both industrial and residential settings.
Properties and Behavior
Carbon monoxide is slightly lighter than air and can disperse quickly in open environments. However, in confined spaces with poor ventilation, it can accumulate to dangerous levels, leading to severe health risks. Unlike hydrogen or ammonia, CO does not have a distinctive odor, which makes it particularly hazardous since individuals may not realize they are being exposed.
Toxicity and Exposure Limits
CO binds with hemoglobin in the blood to form carboxyhemoglobin, reducing the body's ability to transport oxygen. This can lead to symptoms such as dizziness, headaches, confusion, and even death in high concentrations. Regulatory agencies set strict exposure limits:
- OSHA (Occupational Safety and Health Administration): Permissible exposure limit (PEL) is 50 ppm over an 8-hour work shift.
- NIOSH (National Institute for Occupational Safety and Health): Recommended exposure limit (REL) is 35 ppm, with a short-term exposure limit (STEL) of 200 ppm.
- ACGIH (American Conference of Governmental Industrial Hygienists): Threshold limit value (TLV) is 25 ppm over an 8-hour period.
