Exd CCTV Dome Camera - IECEx ATEX Hazardous Area Zone 1,2
Exd CCTV Dome Camera - IECEx ATEX Hazardous Area Zone 1,2
Couldn't load pickup availability

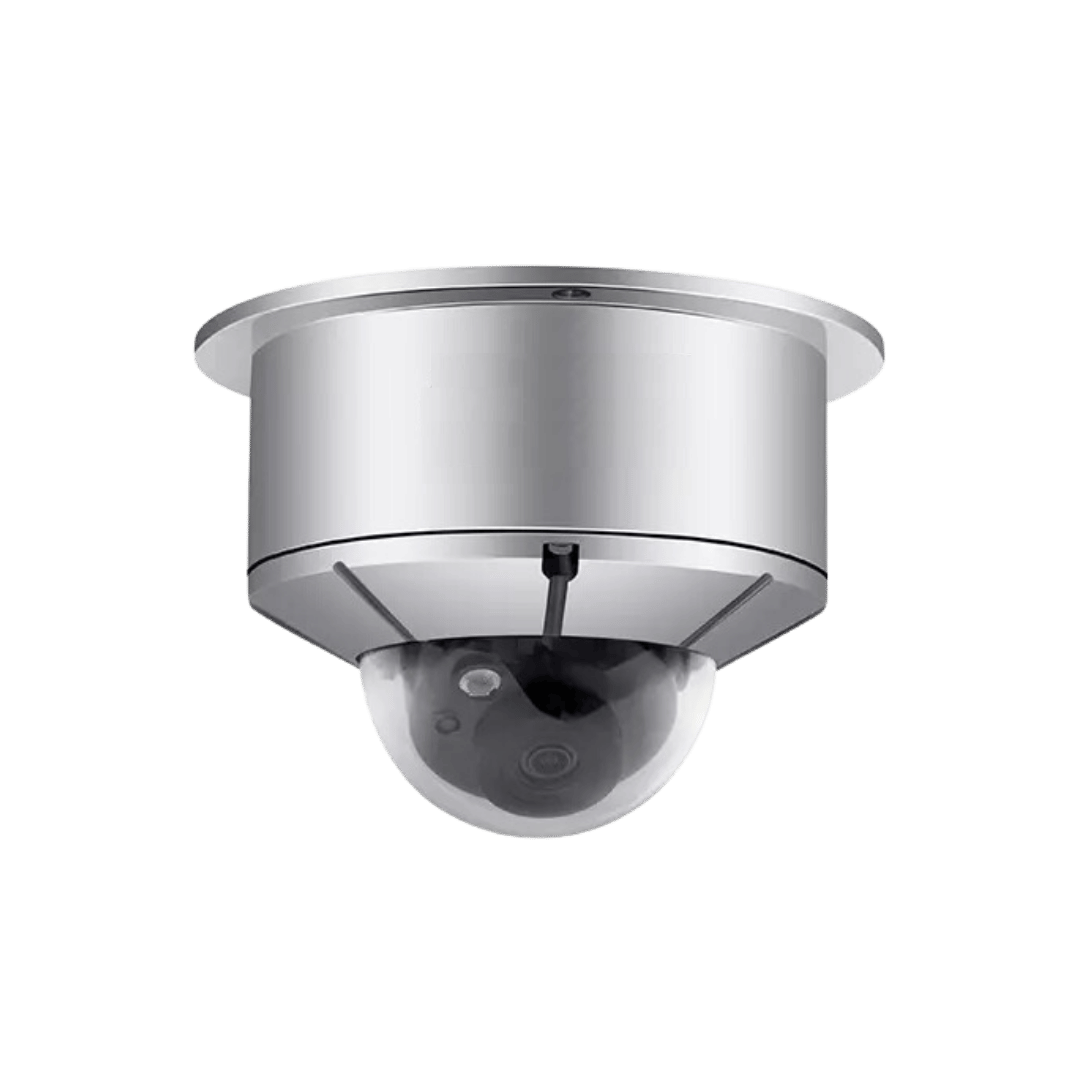

The HB-6300Q Series Hazardous Area, Explosion Proof Dome CCTV Network Camera, sets the stand in Ex rated explosion-proof camera stations. Engineered to endure and perform in the relentless challenges of the industrial environments with moisture, dirt, dust, corrosion, and vibration.
Harnessing equipment protection levels of Flameproof "d", dust ignition protection by enclosure "tb". These cameras are perfectly suited for the most challenging harsh atmospheric conditions found in industries such as oil and gas, marine, petrochemical, chemical, petroleum, spray booths, and breweries. Covered by the IECEx and ATEX certification, brings a compliant solution to hazardous areas.
SKU Model: HB-6300Q
Collapsible content
Technical Datasheets
Shipping
Shipping rates and delivery times are calculated at checkout.
Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.
We aim to process and get your delivery with you as quick as possible.
Please contact us to retrieve the estimate lead times for your order.
Guarantee
We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.
Warranty
• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
Please see our returns policy for more information.
-
Hazardous Area Certified
EPL Zone Location
ATEX
- Ex db IIC T6 Gb
- Ex tb IIIC T80℃ Db
-
Features
- uses a high-performance 4MP 1 / 3 inch line-by-line scan CMOS image sensor
- starlight class low illumination monitoring, minimum illumination: color 0.003lux, 0 Lux infrared light on
- built-in high-efficiency infrared repair light, the maximum infrared monitoring distance of 30 meters
- supports face detection, transgression detection, regional invasion, entry area, and leaving area
- 120dB optical wide dynamic to meet the requirements of high contrast scene monitoring
- support H.265, SVC scalable video coding algorithm, higher compression efficiency, flexible application
-
Features
- aviation grade high strength polycarbonate explosion-proof transparent ball cover, hardening, anti-fog treatment, penetration, light transmittance up to 96%
- is made of 304 stainless steel material, suitable for chemical industry, acid and alkali and other strong corrosive environment for use
- supports 9:16 corridor mode, doubling the effective monitoring area in longitudinal scenarios
- area enhancement (ROI) function to improve the image quality in key areas in a low-bandwidth network environment
- supports DC12V / POE power supply mode for easy engineering installation
