Exd Control Station Enclosure Box - IECEx ATEX Hazardous Area Zone 1,2
Exd Control Station Enclosure Box - IECEx ATEX Hazardous Area Zone 1,2
Couldn't load pickup availability

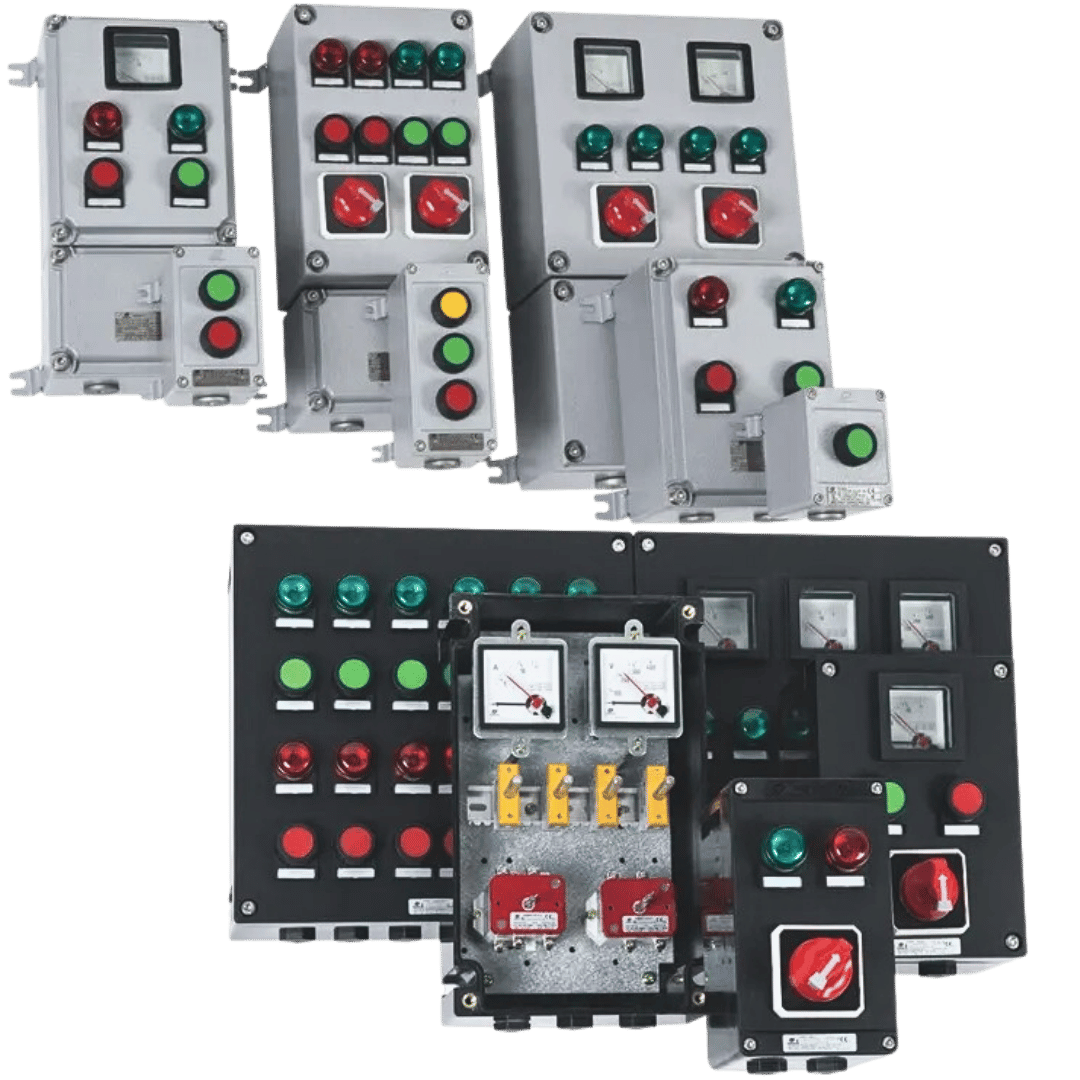

The BZC8050 enclosure series offers excellent performance design and meets the stricter requirements of hazardous areas. Made from aluminium alloy and given an electrostatically applied plastic sprayed coating. This enables UV and thermal stability, providing mechanical impact resistance and excellent resistance when exposed either to salt mist or to marine and other damp environments. Perfect for industrial use.
Compliant to ATEX and IECEx according to EN 60079. Usually installed in industrial plants where there is a risk of explosion and fire, classified
as Zone Gas 1, 2 and Dust 21, 22; with custom configuration to be used as Control Panels, Distribution Terminal Boxes, Monitoring associated with equipment such as motors, pumps, transmitters, sensors, end cables collecting, junction etc.
SKU Model: BZC8050
Collapsible content
Guarantee
We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.
Warranty
• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
Please see our returns policy for more information.
Shipping
Shipping rates and delivery times are calculated at checkout.
Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.
We aim to process and get your delivery with you as quick as possible.
Please contact us to retrieve the estimate lead times for your order.
-
Hazardous Area Certified
Certification
- IECEx CQM 11. 0029
- LCIE 09 ATEX 3099
Protection level marking:
IECEx
- Ex d e IIC T6 Gb
ATEX
- Ex II 2 G Ex d e IIC T6 Gb
- Ex II 2 D Ex tb IIIC T80 Db IP65
-
Customisable Configuration
- Mounting
- Number of control switch
- Control switch (optional)
- Number of indicator
- Indicator (optional)
- Number of ammeter/voltmeter
- Ammeter/Voltmeter (optional)
- Number of control button
- Control button (optional)
- Cable Gland Entry Holes
-
Electrical Specifications
- Rated voltage: Max. 415V AC
- Rated current: Main circuit current: 6A (for BZC8050-A2D2, BZC8050-A2B1) / 16A (for BZC8050-K1) / 10A (for others)
- Degree of protection: IP65
Electrical Control Station Fabrication
-
Components Selection
-
Design
-
Fabrication
Ex Electrical Manufacturing & Fabrication
- Design & CAD Drawing
- Product and Component Selection
- Bill of materials
- Engineered Fabrication
- Factory Acceptance Testing (FAT)
- Professional packaging and delivery
- Installation
- Calibration
- Maintenance & Repair
Introduction to Hazatex
Pre & Post After Sales Support
- We offer technical after sales support to ensure our clients are backed by our team.
- Whether you need support with custom project fabrication, calibration, on-site installation.
- We are here to bring a partnered business relationship with you.
- Our fulfilment warehouse has stocking capabilities for small or large projects.
Built-in Components
- Main switch: miniature circuit breaker(MCB)
or molded case circuit breaker (MCCB)
(Noted: earth leakage protection on request) - Switches
- Button
- Indicator lights
- Emergency stop
- Illuminated pushbutton
- Key switches
- Ampere Voltmeter
- Potentiometer
- Digital displays
- and more
