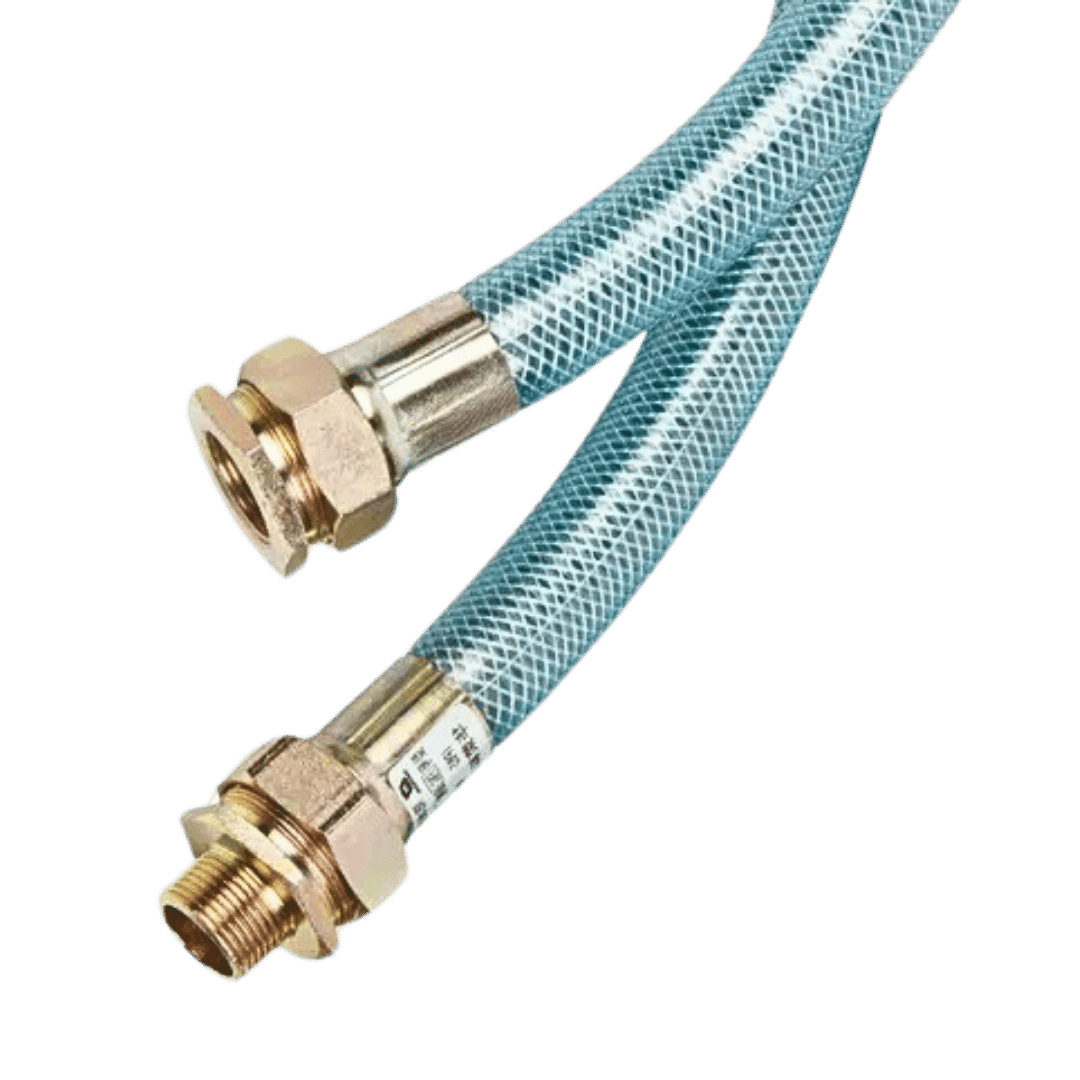

PVC Weatherproof Flexible Conduit Pipe with Thread Gland Fitting

• Standard Analogue/SIP phone with door
• 42CM vandal resistant handset and cord
• Standard IP 66 weatherproof rating
• Full rubber keypad with memory,0-9 buttons can be programmed as speed dial button.
• “LR” button for last number redial
• “R” for flash recall
• “M” for muting
• Phone line powered (Analogue)
• POE or DC12V powered (SIP )
• RJ45 port for SIP connection
• on wall mounting with mounting bar
• II 2G Ex e ib [ib] mb IIC T4 Gb
• III 2D Ex ib [ib] tb IIIC T135 °
• Zone 1 & Zone 2
• ATEX,CE,FCC,RoHs compliant

Standard Analogue

As a standard analogue telephone, this unit provides basic telephone functions and can be connected to any standard two-wire telephone line, including analogue PABX lines and PSTN.

ANALOGUE

Dialing

MF (tone)

Power supply

Drawn from telephone line

Lightning / Transients

Protection to ITU-T k.21 enhanced levels

Programming

Can be programmed remotely by DTMF tone or use keypad

TECHNICAL SPECIFICATIONS

Casing Material

Die cast aluminium,epoxy powder coated.

Handset Material

With Noise cancelling microphone, for effective communication from noisy areas(Armoured SS cord stands up to rough treatment, optional for black curly cord )

Hook switch

Electronic / magnetic with no visible moving parts

Keypad

Rubber Keypad

Temperature

T4

Weather Resistance

IP66(standard)~ IP67(highest rating)

Ringing Tone

Shrill warble tone 80 dBA @ 1 metre typical  (Analog)

Shrill warble tone 90 dBA @ 1 metre typical  (SIP)

M.T.B.F.

Calculated to have an M.T.B.F. in excess of 50,000 hours using

SIP-VoIP TECHNICAL SPECIFICATIONS

Power:

12V DC or PoE: IEEE802.3af/at

Port:

WAN: 10/100Base- T RJ-45 for LAN, Auto MDIX

LAN: 10/100Base- T RJ-45 for PC, Auto MDIX

Power Consumption:

Idle:1.5W/ Active:1.8W

Voice Features

• Support SIP 2.0 (RFC3261)
• Codec: G.711A/u, G.7231 high/low, G.729, G.722
• Echo cancellation: Support G.168 and hand-free can support 96ms
• Supports full duplex
• SIP support SIP domain,SIP authentication(none, basic,MD5),DNS name of server
• DTMF:SIP info, DTMF Relay,RFC2833
• Call control feature:Flexible dial map,support hot-line

Network Features

• WAN/LAN: support Bridge mode
• Support static IP address
• Support DHCP get IP on WAN port
• Support VLAN
• Support web config
• Data Protocols: IPv4, TCP, UDP, ICMP, ARP, DNS and DNS SRV for SIP Signalling

PACKAGE

unit size: 246 *339 *126 (mm)

Carton size:200*300*440 ( mm )

Packaging materials: pearl cotton, carton

Gross weight: 9KG

Net weight: 8KG

Shipping rates and delivery times are calculated at checkout.

Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.

We aim to process and get your delivery with you as quick as possible.

Please contact us to retrieve the estimate lead times for your order.

Please see our shipping policy for more details

We aim to provide you with the best quality products, if for an unfortuante product defect we have a 14 day money back return guarantee.

Please see our returns policy for more information.

This product has the following explosion protection:

CE

Radio & Telecommunications Terminal Equipment Directive - 2004/108/EC

FCC

FCC Part 15 Subpart B Class B

ATEX

II 2G Rx e ib [ib] mb IIC T6 Gb

III 2D Ex ib [ib] tb IIIC T135 °

-40 °C ≤ Ta ≤ +60 °C/+40°C

Zone 1, 2, 22
